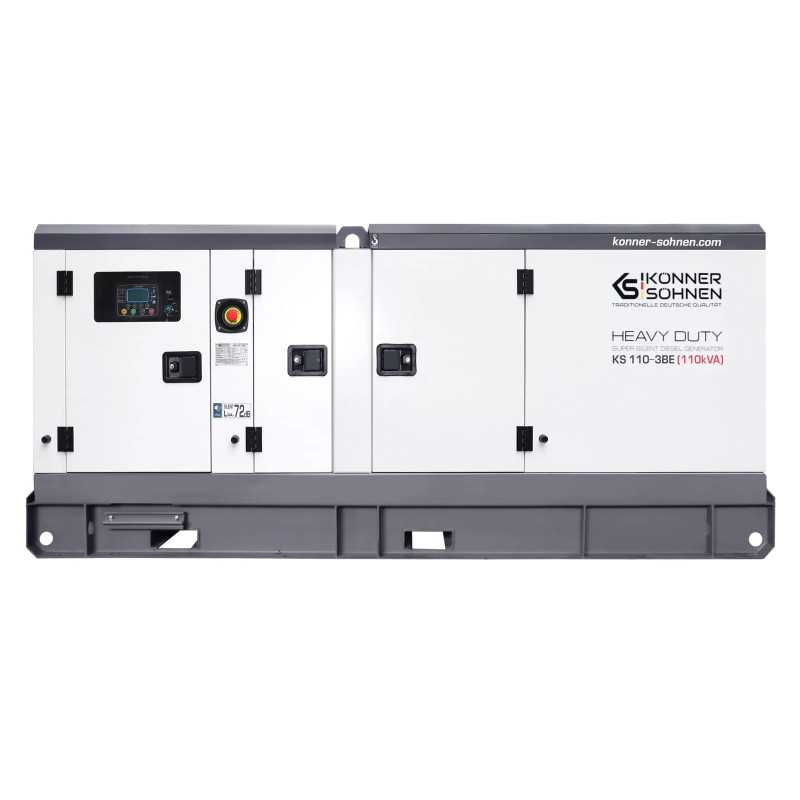

Könner & Söhnen KS 110-3BE diesel generator

The Könner & Söhnen KS 110-3BE is the top-of-the-range model in this line of Heavy Duty diesel power stations, designed for sites where the backup power supply must be able to handle a substantial three-phase load. With a rated power of 80 kW and a maximum power of 88 kW, this generator set is suitable for industrial enterprises, large agricultural facilities, construction sites, medical institutions, warehouse complexes, manufacturing equipment and critical infrastructure.

At the heart of this model is a low-speed Baudouin 4M10G110/5 diesel engine. This is a 4-cylinder, 4-stroke, water-cooled engine designed for professional use and stable operation under high loads. The engine operates at 1,500 rpm, has a displacement of 4,087 cm³ and delivers an output of 90 kW / 121 hp.

Baudouin is a French engine manufacturer with over a century of history, so this model places particular emphasis on durability, reliability and the ability to operate in challenging conditions. This is crucial for large facilities: the generator must not only start up during a power cut but also reliably maintain the operation of equipment, engineering systems and critical loads.

The electronic speed control system helps maintain smooth engine operation when the load changes. This is particularly useful for facilities where electric motors, pumps, ventilation systems, compressors, automation and other three-phase equipment are operating simultaneously. Combined with a Stamford-type synchronous brushless alternator, the power station ensures a stable power supply for critical tasks.

A pre-start-up warm-up is provided for rapid start-up readiness. It helps prepare the engine for start-up, which is particularly important during cold weather or when installing the power station at sites where the generator must be ready for operation at any moment. This makes the KS 110-3BE more practical for emergency and automatic backup power supply systems.

Control is carried out via the Datakom D300 multifunctional digital controller. The graphic LCD display shows the power plant’s operating parameters, operating modes, warnings and fault messages. This controller is convenient for daily monitoring, maintenance and integration of the generator into more complex power systems.

The model is capable of connecting to an ATS, so it can be used in automatic backup power supply systems. When fitted with the appropriate automation unit, the power plant can start up following a mains power failure and supply power to critical loads without manual intervention.

A 185-litre fuel tank is provided for autonomous operation. With a fuel consumption of 9.91 litres per hour at 50% load, the estimated operating time at 100% load is approximately 9.3 hours. This is a good reserve for a powerful power station of this class, particularly when providing backup power to large facilities.

The KS 110-3BE is equipped with a 100 Ah starter battery and a built-in charging module. The battery is used for electric starting and the operation of the control system, whilst the charging module helps to maintain its readiness in standby mode.

The power station’s housing is designed as a soundproof, moisture-resistant and all-weather enclosure. The noise level is 72/97 dB LpA (7 m)/LwA. The galvanised coating on the housing provides additional protection for metal components against corrosion and enhances durability in fixed installations. Thanks to its well-thought-out design and designated lifting points, the model is easier to move and maintain on large sites.

The Könner & Söhnen KS 110-3BE is the solution for situations where you need not just a backup power station, but a powerful professional power unit featuring a Baudouin engine, water cooling, electronic speed control, pre-start heating, ATS connection and a protected housing for demanding operating conditions.
