    EcoFlow 1000 Wp balcony solar power station with STREAM Max 1.9 kWh battery (2 solar panels)
    EcoFlow 1000 Wp balcony solar power station with STREAM Max 1.9 kWh battery (2 solar panels)
    EcoFlow 1000 Wp balcony solar power station with STREAM Max 1.9 kWh battery (2 solar panels)
    EcoFlow 1000 Wp balcony solar power station with STREAM Max 1.9 kWh battery (2 solar panels)
    Is this product right for me? Ask an expert

    We use your details solely to process your enquiry and to contact you. More information in our Privacy Policy.



    EcoFlow 1000 Wp balcony solar power station with STREAM Max 1.9 kWh battery (2 solar panels)

    €1,377.00
    0 % VAT per § 12
    €1,638.63 (incl. 19 % VAT)
    14-day right of withdrawal

    Estimated dispatch: 26 November – 3 December (5–10 working days after payment).

    Specially packed and secured on a pallet for safe transport.

    In stock
    • Max. power, W: 1000
    • Battery capacity, W-h: 1920
    • Annual savings: ≈ up to 1270–1310 kWh/year
    EAN-13:
    4251613516860
    MPN:
    1-02333.bkw
    153102-10

    Two solar panels with a combined output of 1,000 Wp make full use of the STREAM Max’s PV input.

    Electricity generated during the day is stored so that you can use it even when the sun isn’t shining.

    A perfect combination: 2 modules connected to 2 MPPT trackers for maximum output.

    Compact: inverter and battery in a single unit.

    Long-lasting: LFP battery with up to 6,000 charge cycles.

    Built for outdoor use: IP65 protection rating.

    Quantity :

    Additional accessories

    Mounting brackets

    Solar panel mounts for balcony railings

    Solar panel mounts for balcony railings

    €59.00
    Mounting brackets for solar panels for concrete fences 8–15 cm thick

    Mounting brackets for solar panels for concrete fences 8–15 cm thick

    €130.00
    Solar panel mounts for concrete fences 18–25 cm thick

    Solar panel mounts for concrete fences 18–25 cm thick

    €130.00
    Mounting brackets for solar panels on a building façade (90°)

    Mounting brackets for solar panels on a building façade (90°)

    €14.90
    Mounting system for solar panels on a tiled/pitched roof

    Mounting system for solar panels on a tiled/pitched roof

    €69.00
    Mounting brackets for solar panels on the façade (with adjustable tilt angle)

    Mounting brackets for solar panels on the façade (with adjustable tilt angle)

    €49.00
    Mounting brackets for solar panels on a flat roof or in the garden

    Mounting brackets for solar panels on a flat roof or in the garden

    €45.00

    Accessories

    EcoFlow Smart Meters

    EcoFlow Smart Meters

    €99.00
    STREAM AC Cable, 5 m

    STREAM AC Cable, 5 m

    €19.90
    Solar panel extension cable, 3 m

    Solar panel extension cable, 3 m

    €32.77
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

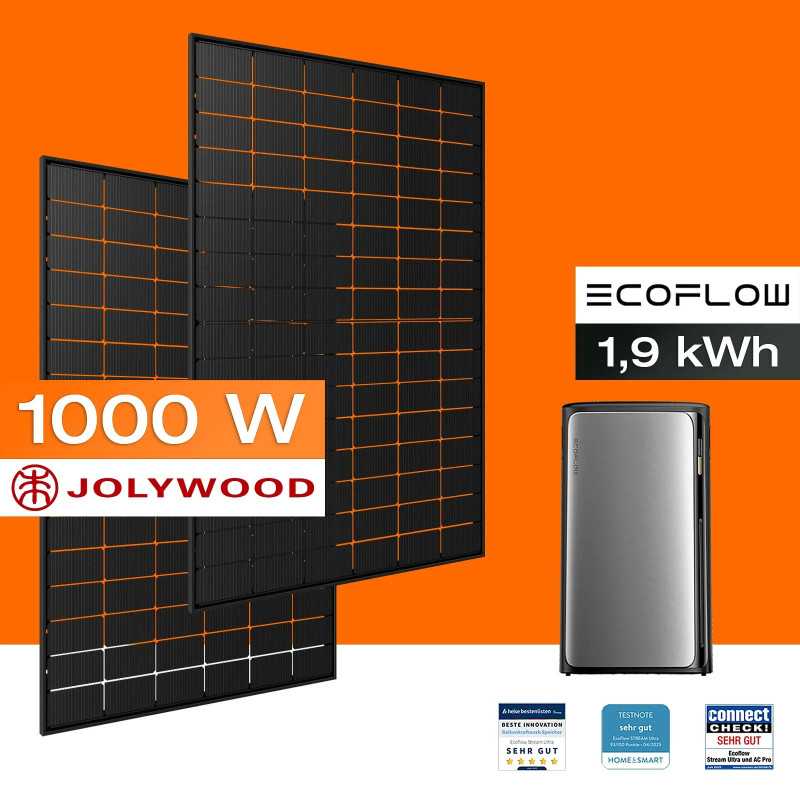

    The EcoFlow 1,000 Wp balcony solar system with STREAM Max 1.92 kWh is a compact kit for the balcony, the terrace or a private solar installation, designed to combine daily solar power generation with the option of storing energy for use in the evening and at night.

    The kit comprises the EcoFlow STREAM Max storage unit with a capacity of 1.92 kWh and two NIWA JW-HD108N-R2-500 solar panels from Jolywood, each with a power output of 500 W. The total peak power output of the solar panels is 1,000 Wp, making the system well-suited to meeting basic household energy needs, charging the storage unit during the day and reducing dependence on the mains grid.

    STREAM Max acts as a smart energy storage system. During daylight hours, it stores surplus energy and releases it when household consumption rises. This is particularly useful in the morning, in the evening and at times when there is insufficient sunlight but power is still required for household appliances.

    The storage unit features 2 MPPT trackers and supports a PV input of up to 1,000 W, i.e. up to 500 W per channel. The system is connected to the 230 V domestic mains supply, has a mains AC output of up to 800 W, a storage unit AC output of up to 1,200 W, and supports connected devices via a bypass output of up to 2,300 W.

    The total weight of the kit’s main components is approximately 76.6 kg, excluding cables, packaging and mounting hardware. The STREAM Max storage unit weighs 22.0 kg, whilst the two solar modules together weigh approximately 54.6 kg. The dimensions of the storage unit are 284 × 255 × 458 mm, whilst those of a single module are 1,960 × 1,134 × 30 mm.

    The actual dimensions depend on the type of installation. If two modules are arranged in a row without any spacing between them, the approximate area of the modules is 3920 × 1134 × 30 mm. If the modules are arranged one above the other, the approximate area of the modules is 1960 × 2268 × 30 mm. The total area of the two solar modules is approx. 4.45 m².

    The NIWA JW-HD108N-R2-500 solar modules feature a full-black design, a bifacial construction, a glass-on-glass design, N-type J-TOPCon technology and an efficiency of 22.5 per cent. Thanks to their bifacial design, the modules can achieve additional yield gains from reflected light, provided they are installed on a suitable surface.

    Control and monitoring are possible via the EcoFlow app. STREAM Max supports Wi-Fi and Bluetooth; a connection to Wi-Fi and the EcoFlow app is required to access the full range of functions of the STREAM series. In the app, you can view the system’s operating data, monitor the battery and configure usage scenarios.

    The power station has an IP65 protection rating, an operating temperature range of -20 to +55 °C, an integrated battery heating system for charging at low temperatures, and a noise level of less than 30 dB. This makes the set ideal for everyday use at home, where quiet operation, reliability and easy connectivity are important.

    The set includes the STREAM Max storage unit with a capacity of 1.92 kWh, 2 NIWA JW-HD108N-R2-500 solar modules (500 W each), 2 pairs of solar extension cables (5+3 m) with a total length of 8 m, and a 1.5 m AC cable for connection to a 230 V socket. If required, the system can be supplemented with longer solar cables or flat cables to allow for convenient routing through window or door frames.

    EcoFlow
    153102-10
    99 Items

    Data sheet

    Protection class
    IP65
    Battery type
    LFP
    Battery capacity, W-h
    1920
    Warranty, months
    120
    Max. power, W
    1000
    Element type
    TOPCon n-type
    Efficiency coefficient, %
    22.5
    No-load voltage, V
    34.91
    Short-circuit current, A
    15.86
    Mobile application
    Yes
    Operating temperature, °C
    -20°C…+50°C
    Weight, kg
    76.6
    Device type
    Balcony solar power station
    Purpose
    Reducing electricity costs
    Annual savings
    ≈ up to 1270–1310 kWh/year
    Payback period
    ~2.5–3.5 years
    Set-up time
    3–4 hours
    Control
    Manual / App

    Specific References

    EAN13
    4251613516860
    MPN
    1-02333.bkw
