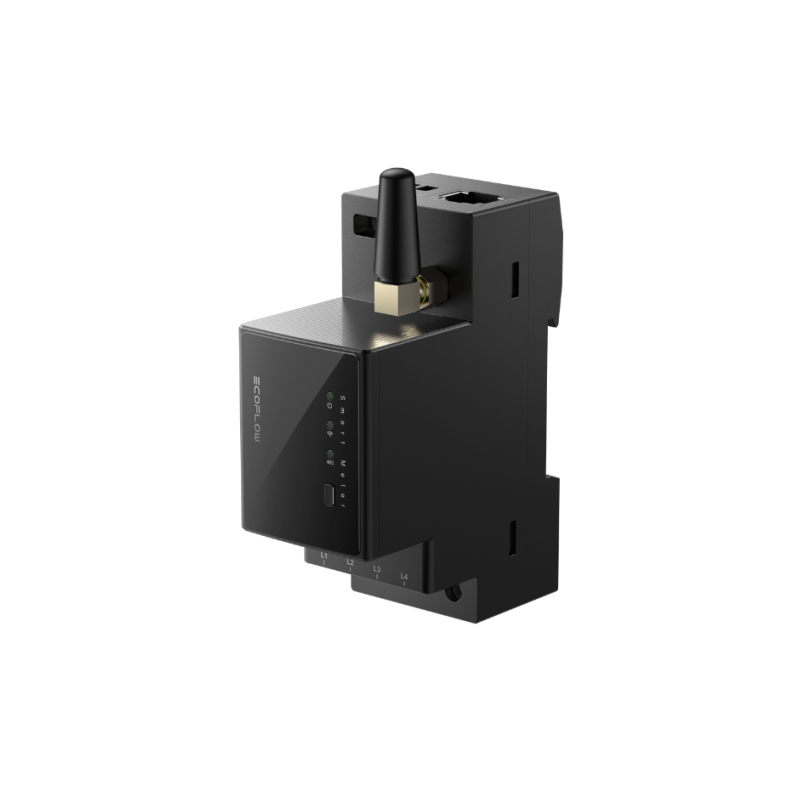

EcoFlow Smart Meters

TheEcoFlow Smart Meter EFSMARTMETER-EU-120A is a smart energy meter for domestic electrical systems, designed to help you monitor your electricity consumption in real time and better manage the operation of EcoFlow STREAM systems.

The device is installed on a DIN rail in the distribution board and is suitable for single-phase and three-phase electrical systems. The maximum current is 120 A per phase, so the meter can be used to monitor the energy consumption of the entire household.

The EcoFlow Smart Meter measures voltage, current, power, power factor and accumulated electricity. Data is updated at a minimum interval of approximately 1 minute and stored for at least 60 days, allowing you to analyse consumption, identify energy-intensive devices and better plan your electricity usage.

Wi-Fi is used for connection, whilst initial setup is carried out via Bluetooth. Once the device is paired, the user can view readings via the EcoFlow mobile app, monitor current consumption and track energy flows within the home system.

When combined with EcoFlow STREAM batteries, the Smart Meter helps the system understand more accurately when the home is drawing energy from the grid and when there is a surplus of solar generation. This allows for more efficient use of stored energy, reduces losses and increases the proportion of self-consumption.

The unit has compact dimensions of 90×66×36 mm and an IP30 protection rating. The device is designed to operate at temperatures ranging from -25 to +70 °C, consumes less than 3 W and is intended for installation in an electrical distribution board.

The EcoFlow Smart Meter is particularly useful for homes with solar panels, balcony power stations, home energy storage units and systems where it is important to monitor actual consumption and grid import, and to optimise equipment operation in automatic or manual mode.

Important: the meter must be installed in the fuse box by a qualified electrician. The device is not a standard accessory for portable charging stations and is designed for integration with the home electrical system.
