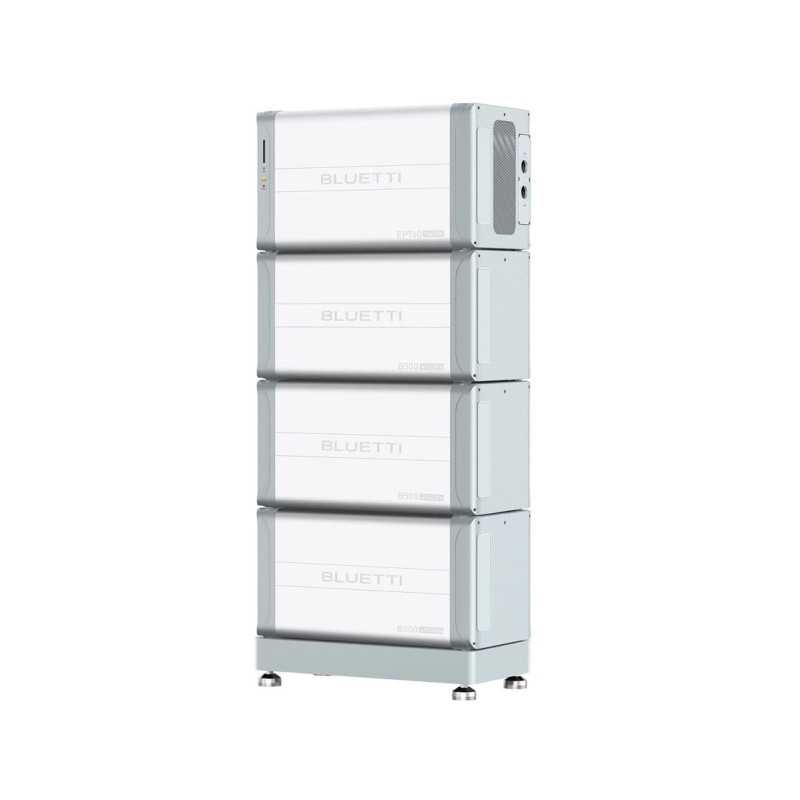

Bluetti EP760+3xB500 Home Backup Power Station

TheBluetti EP760+3xB500 is an advanced home backup power station designed for homes, holiday homes, offices or technical rooms where high power output and greater energy capacity are required. The kit consists of an EP760 inverter and three B500 battery packs, providing 7600 W of rated power and a total capacity of 14880 Wh.

This configuration offers significantly greater autonomy compared to the EP760+2xB500 kit. It is better suited to situations where critical loads need to be maintained for longer periods: lighting, a fridge, a router, pumping equipment, heating systems, household appliances, work electronics or other equipment within the permissible load limits.

The EP760 inverter provides a single-phase output power of up to 7600 W, so the system is designed not only for basic devices but also for more power-hungry equipment. The output voltage is a pure sine wave, which is important for the stable operation of electronics, household appliances, automation systems and equipment sensitive to power quality.

The battery pack is built using LiFePO4 batteries. Each B500 battery has a capacity of 4960 Wh, and a set of three batteries provides a total of 14880 Wh. This type of battery is well suited for domestic backup power systems due to its stability, safety and long service life.

The system is equipped with a BMS, which monitors the batteries and helps protect them from undesirable operating conditions. This is particularly important for a stationary system with a large capacity, used for regular backup power or in conjunction with solar panels.

The EP760 supports UPS and pass-through charging, so it can be used as a home backup power source during grid instability. In the event of a power cut, the system helps keep essential devices running and minimises the inconvenience caused by power outages.

For solar energy integration, it supports solar panels with a maximum power output of up to 9000 W. This allows the EP760 to be used not only as a battery backup but also as part of a home energy system, storing solar energy for evening use, peak loads or emergencies.

Control is available via the BLUETTI app. Through it, you can monitor energy consumption, check the system status, switch operating modes and perform updates. This is convenient for daily monitoring and configuring the system for real-world usage scenarios.

The casing has an IP65 rating, which enhances resistance to dust and moisture. The operating temperature range is from -20°C to 40°C, and the noise level is stated as less than 50 dB. As a result, the EP760 operates significantly more quietly than petrol generators and is better suited for installation in a house, basement, utility room or other designated area.

The Bluetti EP760+3xB500 is a balanced configuration for those who have outgrown the 9920 Wh model but do not yet require the top-of-the-range version with four batteries. It combines 7600 W of power, 14880 Wh of capacity, LiFePO4 batteries, pure sine wave, UPS, solar input up to 9000 W, IP65 rating and app control.
