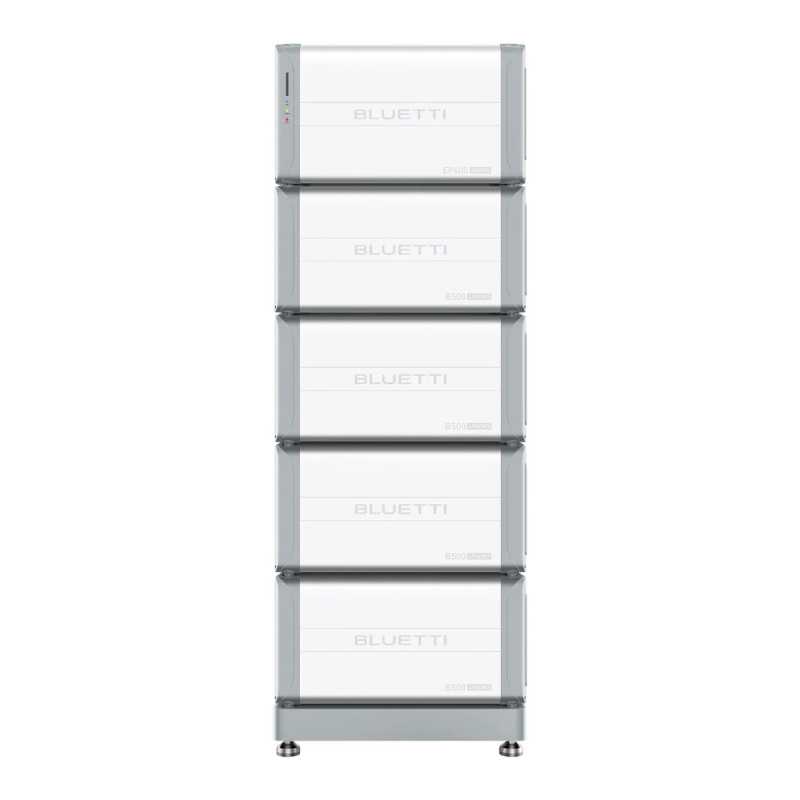

Bluetti EP600+4xB500 Home Backup Power Station

The Bluetti EP600+4xB500 is a high-performance energy storage system for private homes, holiday homes, offices or small commercial premises. The set comprises an EP600 hybrid inverter and four B500 batteries, offering a rated power output of 6,000 W and a total capacity of 19,840 Wh.

This configuration is suitable for situations where not only a short-term emergency power supply for a few devices is required, but also a substantial energy reserve for key loads. The system can maintain the operation of lighting, a fridge, pumps, a router, a heating system, office equipment, some household appliances and other equipment, within the permissible load limits.

The EP600 inverter has a rated AC power output of 6,000 W and operates on a three-phase system. The hybrid inverter design allows the system to be used not only as an emergency power supply but also as part of an energy system incorporating solar panels. To this end, it is equipped with 2 MPPT controllers and supports a PV array with a capacity of up to 6 kW.

The battery pack is based on LiFePO₄ batteries. This type of battery is well suited to stationary energy storage systems due to its stable operation, high level of safety and long service life. For this configuration, a service life of up to 3,500 cycles is specified; the total capacity of the battery pack is 200 Ah and the nominal voltage of the batteries is 99.2 V.

The set comprising four B500 batteries offers a significantly larger energy reserve than the versions with two or three batteries. The capacity of 19,840 Wh enables critical equipment to continue operating for longer during a power cut. The actual runtime depends on the total load and the application scenario.

The system supports UPS and trickle charging, enabling it to serve as an emergency power supply for domestic use in the event of an unstable mains supply. This is particularly useful for properties where it is important to maintain the operation of heating, communications, lighting, pumps or other equipment without prolonged interruptions.

The system is designed to allow remote adjustment of operating parameters. This enables more convenient control of the system, the adjustment of operating modes, and optimisation to suit your own consumption schedule, solar power generation or an emergency scenario.

The housing has an IP65 protection rating, which increases the system’s resistance to dust and moisture. However, when installing outdoors, it is important to ensure correct fitting and protection from direct exposure to the elements. The total weight of the set is 264 kg; therefore, the system should be regarded as a stationary solution intended for professional installation.

The Bluetti EP600+4xB500 is an advanced configuration for anyone requiring high capacity, three-phase operation, support for solar panels, LiFePO₄ batteries, a UPS, pure sine wave output and a reliable home emergency power supply based on the modular Bluetti system.
