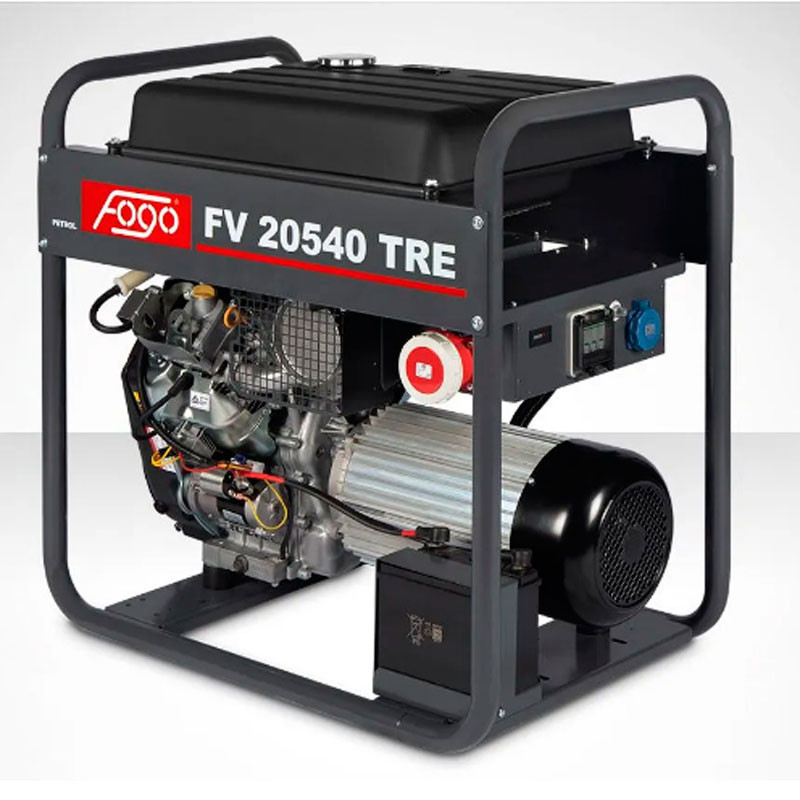

    Fogo FV 20540 TRE (Vanguard) petrol generator
    Fogo FV 20540 TRE (Vanguard) petrol generator

    Fogo FV 20540 TRE (Vanguard) petrol generator

    €7,650.00
    VAT included
    Return policy: 14
    In stock
    • Voltage, V: 230/400
    • Maximum power, kW: 15.6 (400 V), 8 (230 V)
    • Rated power, kW: 14 (400 V), 7.2 (230 V)
    • Start type: Electricity
    MPN:
    37144
    101313-105

    The Fogo FV 20540 TRE is a three-phase petrol generator with a rated output of 14 kW and a maximum output of 15.6 kW at 400 V, designed for domestic, commercial and construction site use.

    In single-phase mode, it delivers a rated power of 7.2 kW and a maximum power of 8 kW at 230 V. The air-cooled Vanguard 5434 two-cylinder engine features an electric start, and the battery is included as standard.

    The AVR voltage regulator ensures a stable voltage, whilst overload protection and an oil pressure sensor protect the generator and engine.

    The generator is IP54-rated for protection against dust and splashing water. It features one 400 V socket and two 230 V sockets for connection.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 20540 TRE (Vanguard) petrol generator

    The Fogo FV 20540 TRE (Vanguard) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.

    Advantages ofthe Fogo FV 20540 TRE (Vanguard) petrolgenerator:

    Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.

    Enhanced safety: electrical wires and cables are securely insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.

    Ease of use: the Fogo FV 20540 TRE (Vanguard) generator is designed for domestic and professional use. Even a user with no experience can operate it with ease.

    AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.

    Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The frame has an anti-corrosion coating. The durability of the power unit is ensured by the air-cooling system.

    Fogo
    101313-105
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    15.6 (400 V), 8 (230 V)
    Rated power, kW
    14 (400 V), 7.2 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    31.3
    Sockets
    1х32A (230V), 1x16А (230V), 1×32А (400V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    6.9
    Sound level Lpa (7 m)/Lwa, dB
    100
    Engine model
    Vanguard 5434
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    2.3
    Engine capacity, cm³
    896
    Voltage regulator
    Intelligent AVR system
    Start type
    Electricity
    Protection class
    IP54
    Net dimensions (LxWxH), mm
    900х580х890
    Net weight, kg
    184
    Power range, kW
    10 - 20
    Number of phases
    3
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    6.5
    Automatic transfer switch (ATS)
    No
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37144
