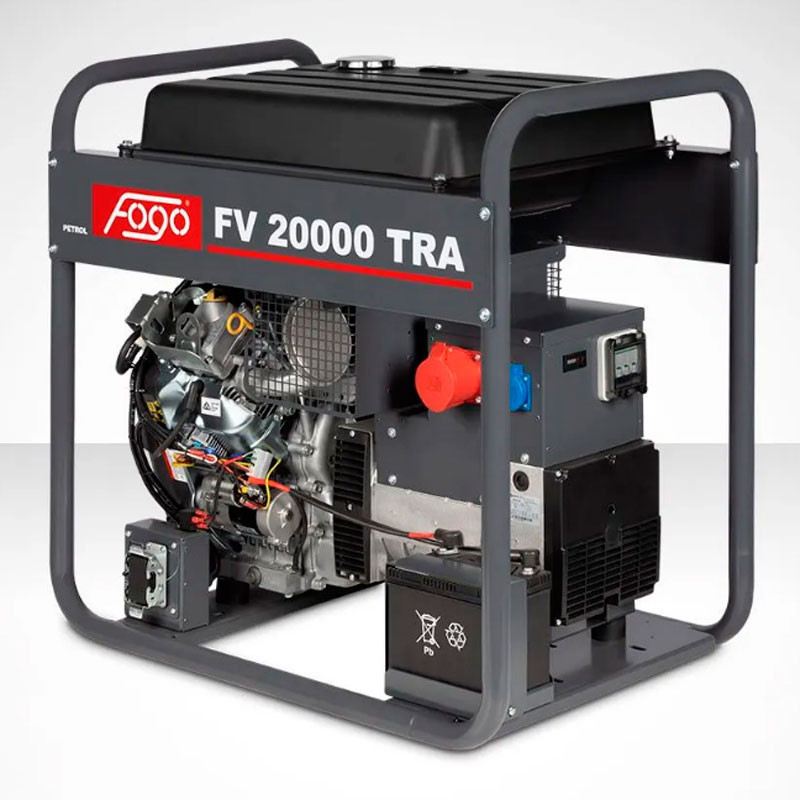

    Fogo FV 20000 TRA petrol generator (Vanguard)
    Fogo FV 20000 TRA petrol generator (Vanguard)
    Fogo FV 20000 TRA petrol generator (Vanguard)
    Is this product right for me? Ask an expert


    Fogo FV 20000 TRA petrol generator (Vanguard)

    €7,353.00
    VAT included
    14-day right of withdrawal

    Estimated dispatch: 21–23 October (3–5 working days after payment)

    In stock
    • Voltage, V: 230/400
    • Maximum power, kW: 15.6 (400 V), 9.9 (230 V)
    • Rated power, kW: 14 (400 V), 9 (230 V)
    • Start type: Electricity
    MPN:
    37143
    101313-103

    The Fogo FV 20000 TRA is a three-phase petrol generator with a rated output of 14 kW and a maximum output of 15.6 kW (230/400 V, 50 Hz) for domestic, commercial and construction site use.

    The air-cooled Vanguard 5434 2-cylinder engine (896 cm³) features an electric start; the battery is included.

    The AVR voltage regulator ensures a stable voltage, whilst overload protection and an oil pressure sensor protect the generator and engine.

    The generator is designed for connection to an ATS control panel. It features a 400 V socket rated at 32 A and a 230 V socket rated at 16 A.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 20000 TRA (Vanguard)petrol generator

    The Fogo FV 20000 TRA (Vanguard) generator can serve as an emergency power source to supply electricity to a country house, a repair team, a building site, etc.

    Advantages of the Fogo FV 20000 TRA (Vanguard) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Enhanced safety: The electrical wiring and cables are reliably insulated. The earthed casing protects against electric shock. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo FV 20000 TRA (Vanguard) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is ready for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures overload-free operation of the generator and prevents voltage spikes.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The frame is corrosion-protected. The unit’s durability is ensured by an air-cooling system.

    Fogo
    101313-103
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    15.6 (400 V), 9.9 (230 V)
    Rated power, kW
    14 (400 V), 9 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    39.1
    Sockets
    2х16А 230V, 1х32А 400V
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    6.9
    Sound level Lpa (7 m)/Lwa, dB
    100
    Engine model
    Vanguard 5434
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    2.3
    Engine capacity, cm³
    896
    Voltage regulator
    Intelligent AVR system
    Start type
    Electricity
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    900х580х890
    Net weight, kg
    160
    Power range, kW
    10 - 20
    Number of phases
    3
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    6.5
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37143
