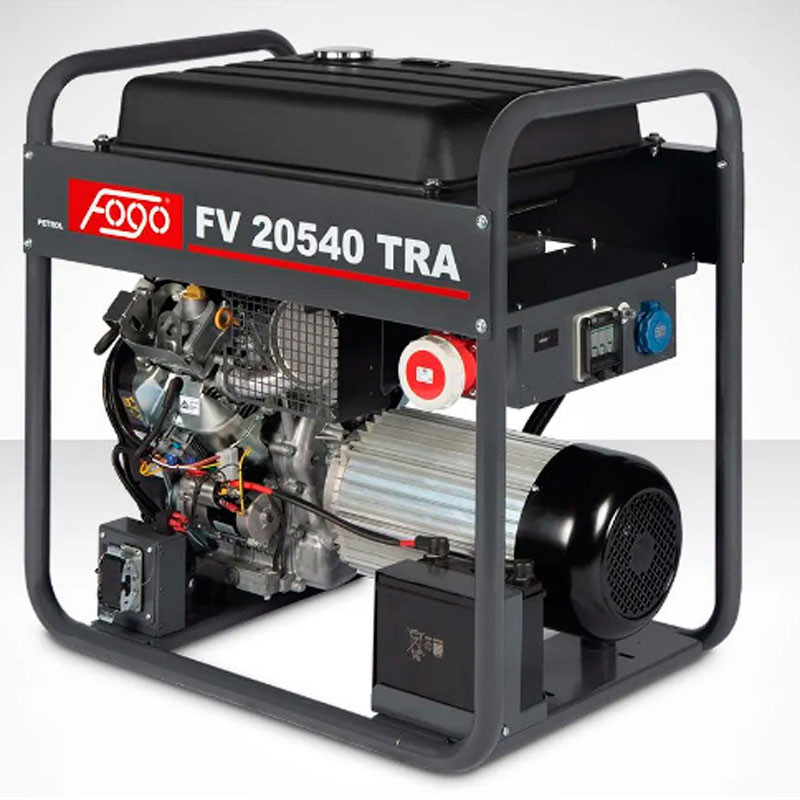

    Fogo FV 20540 TRA petrol generator (Vanguard)
    Fogo FV 20540 TRA petrol generator (Vanguard)

    Fogo FV 20540 TRA petrol generator (Vanguard)

    €8,169.00
    VAT included
    Return policy: 14
    In stock
    • Voltage, V: 230/400
    • Maximum power, kW: 15.6 (400 V), 8 (230 V)
    • Rated power, kW: 14 (400 V), 7.2 (230 V)
    • Start type: Electricity
    MPN:
    37145
    101313-106

    The Fogo FV 20540 TRA is a three-phase petrol generator with a rated output of 14 kW and a maximum output of 15.6 kW at 400 V, designed for domestic, commercial and construction site use.

    In single-phase mode, it delivers a rated output of 7.2 kW and a maximum output of 8 kW at 230 V (50 Hz). The air-cooled 2-cylinder Vanguard 5434 engine (896 cm³) features an electric start; the battery is included.

    The AVR voltage regulator ensures a stable voltage, whilst overload protection and an oil pressure sensor protect the generator and engine.

    For connection, there is one 400 V socket and two 230 V sockets.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 20540 TRA (Vanguard)petrol generator

    The Fogo FV 20540 TRA (Vanguard) generator can serve as an emergency power source to supply electricity to a country house, a repair team, a building site, etc.

    Advantages of the Fogo FV 20540 TRA (Vanguard) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Enhanced safety: The electrical wiring and cables are reliably insulated. The earthed casing protects against electric shock. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo FV 20540 TRA (Vanguard) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is prepared for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures overload-free operation of the generator and prevents voltage fluctuations.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The frame is corrosion-protected. The unit’s durability is ensured by an air-cooling system.

    Fogo
    101313-106
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    15.6 (400 V), 8 (230 V)
    Rated power, kW
    14 (400 V), 7.2 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    31.3
    Sockets
    1х32A (230V), 1x16А (230V), 1×32А (400V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    6.9
    Sound level Lpa (7 m)/Lwa, dB
    100
    Engine model
    Vanguard 5434
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    2.3
    Engine capacity, cm³
    896
    Voltage regulator
    Intelligent AVR system
    Start type
    Electricity
    Protection class
    IP54
    Net dimensions (LxWxH), mm
    900х580х890
    Net weight, kg
    185
    Power range, kW
    10 - 20
    Number of phases
    3
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    6.5
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37145
