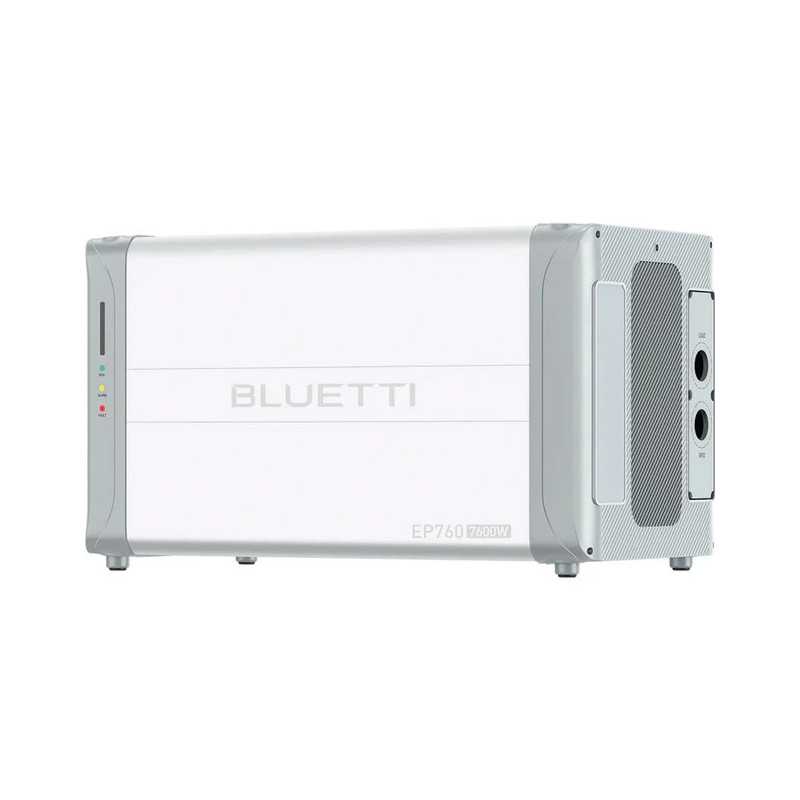

Bluetti EP760 Inverter

The Bluetti EP760 inverter is a single-phase hybrid inverter designed for home energy storage systems. The model is compatible with Bluetti B500 battery modules and enables the creation of a backup power supply system, solar energy storage, and partial or full off-grid operation for the home.

The EP760 is designed for a single-phase 230 V connection and a frequency of 50 Hz. This makes it ideal for private homes, flats, small offices, technical rooms and facilities where a reliable backup power system is required without a three-phase configuration.

The inverter’s rated output power is 7.6 kW. This capacity is sufficient for most essential domestic appliances: lighting, a fridge, a router, computer equipment, a CCTV system, pumps, a boiler, kitchen appliances and other equipment within the permissible load limits.

The system is built on a modular principle and supports B500 battery packs. The system capacity can be configured from 4.96 kWh to 19.84 kWh. This range allows you to select a configuration for various tasks: from short-term backup for critical devices to longer-term autonomous operation of key household appliances.

One of the advantages of the EP760 is its support for both AC coupling and DC coupling. This simplifies integration into new or existing solar systems. The inverter can be used as part of a new power system or as a retrofit solution for a site where solar generation is already in place.

The maximum PV input power is 9 kW. The MPPT range is 150–500 V, with a nominal value of 360 V, and the maximum current per MPPT input is 12.5 A. There are 3 independent MPPT inputs, allowing for more flexible connection of solar panels and more efficient operation with different orientations or groups of modules.

The system supports switching to backup power in less than 10 ms. This is important for equipment that must not shut down abruptly during a power cut. The EP760 can support the operation of network equipment, computers, security systems, lighting and other critical devices.

The inverter has an IP65 protection rating, so it is better protected against dust and moisture. The operating temperature range is from -20°C to +50°C, and the noise level is up to 50 dB. This allows the equipment to be installed in technical rooms or protected outdoor areas.

Wi-Fi and Bluetooth are provided for communication and control. The monitoring system allows you to track the inverter’s operation, battery charge, solar energy generation and current consumption. This is convenient for daily monitoring of the power system and optimising the use of stored energy.

The inverter measures 636×325×370 mm and weighs 46 kg. This is a stationary unit that requires proper installation, selection of B500 batteries, protective circuit breakers, solar panels and connection to the mains in accordance with the site’s requirements.

The Bluetti EP760 is a practical solution for a single-phase home energy storage system. It combines 7.6 kW of output power, support for B500 batteries up to 19.84 kWh, a PV input of up to 9 kW, 3 MPPT inputs, support for AC and DC coupling, backup switching in under 10 ms, IP65 rating, Wi-Fi, Bluetooth and a 10-year warranty.
