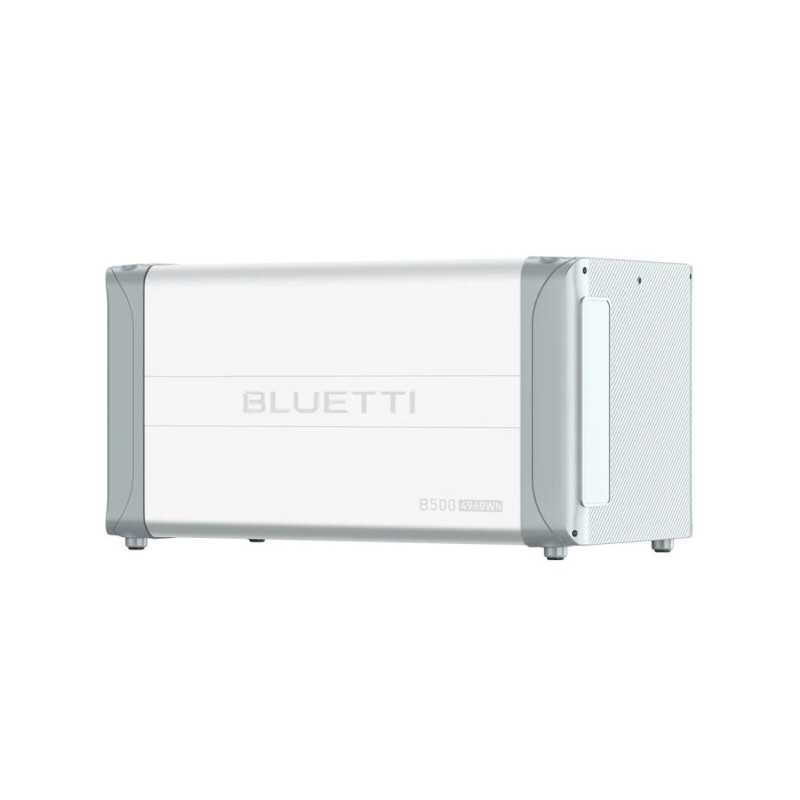

Bluetti B500 Portable Power Station

The Bluetti B500 additional battery is a battery module for Bluetti home energy storage systems. It is used to increase the energy storage capacity of the EP600, EP760, EnergyPro 8K EP800 and EnergyPro 9K EP900 systems. The module is suitable for home backup power, solar energy storage and reducing dependence on the mains grid.

The battery capacity is 4.96 kWh. This is a basic power module from which a system of the required capacity can be built. When combined with Bluetti inverters, the B500 batteries allow you to create both a compact backup power system for essential devices and a more powerful solution for long-term off-grid operation of the home.

The Bluetti B500 is based on LiFePO4 battery technology. Lithium iron phosphate batteries are well-suited for stationary energy storage systems, as they are designed for a long service life, stable operation and safe daily use. This type of battery is particularly suitable for systems that are regularly charged by solar panels or serve as a backup during power cuts.

The modular design allows the system capacity to be scaled to specific requirements. For example, in the EP600 system, B500 batteries can form configurations ranging from 4.96 kWh to 39.6 kWh. In the EP760 system, the capacity can be configured from 4.96 kWh to 19.84 kWh. This allows you to select a solution for a flat, a private house, an office or a technical room.

The battery has an IP65 protection rating. This means enhanced protection of the housing against dust and moisture, which is important for equipment installed in technical rooms or protected outdoor areas. The operating temperature range is from -20°C to +50°C, so the module is suitable for use in various operating conditions.

The battery dimensions are 636×325×338 mm, and it weighs 58 kg. This is a stationary battery module that requires proper installation and professional connection to a compatible inverter. Due to its considerable weight, the battery is best installed in a prepared location, taking into account requirements for ventilation, access and maintenance.

The Bluetti B500 comes with a 10-year warranty. This underscores the module’s focus on long-term operation in domestic and commercial power systems. The battery is well-suited for users who wish to create a reliable ESS system with the potential for future expansion.

The Bluetti B500 add-on battery is a practical module for increasing the capacity of Bluetti EP600, EP760, EP800 and EP900 systems. It combines a capacity of 4.96 kWh, a LiFePO4 battery, IP65 protection, an operating range from -20°C to +50°C and a 10-year warranty. It is a good solution for backup power, solar energy storage and building a scalable home energy independence system.
