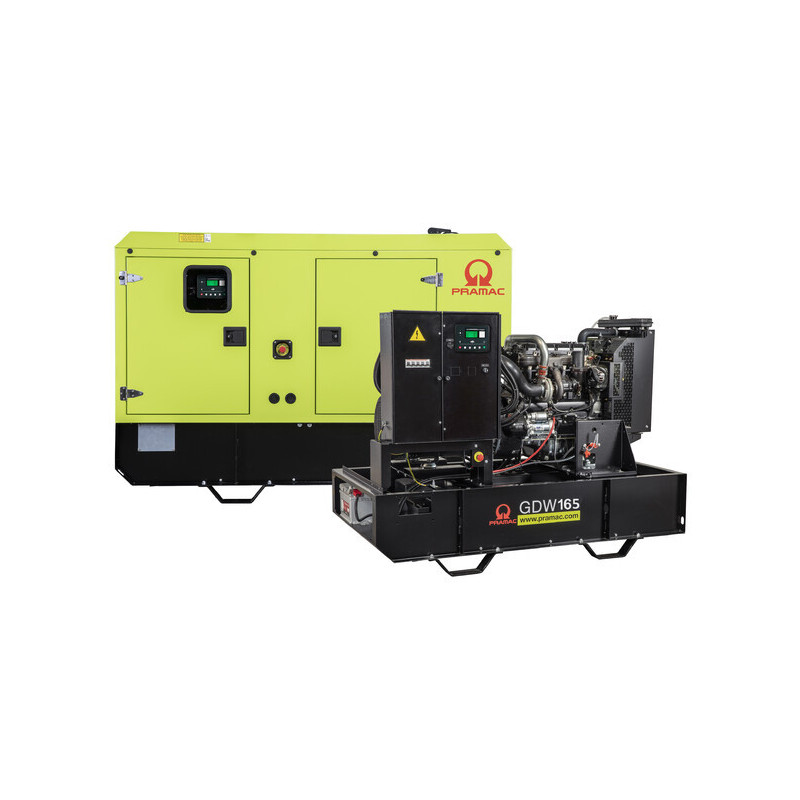

Pramac GDW 165 P (B20) 400V diesel generator

The Pramac GDW 165 P 400/230 V is a powerful three-phase diesel generator designed for facilities requiring a stable power supply with high endurance and power reserve. The model delivers 132.0 kW of maximum power and 120.0 kW of rated power, making it well-suited for manufacturing plants, warehouse complexes, technical infrastructure, service centres and backup power for large facilities.

This version uses a Perkins 1106A-70TAG2 turbocharged diesel engine with a displacement of 7,010 cm³. The six-cylinder in-line configuration is well suited for stable operation under heavy loads, whilst liquid cooling helps maintain a reliable thermal regime during prolonged operation. A mechanical speed governor ensures predictable operation of the unit in working mode.

For quick starting, the generator is equipped with an electric starter and a 12 V battery system. This makes the model suitable for backup systems where a rapid power supply is essential in the event of a power cut. The technical specifications specifically mention the 12 V battery voltage, so it is worth highlighting this advantage both in the description and in the marketing presentation of the model.

The generator operates at 400/230 V, 50 Hz and is three-phase. The model uses a Mecc Alte ECP34 1L4 C brushless alternator with insulation class H and protection rating IP23. The maximum current is 238 A, and fuel consumption at 100% load is 32.69 l/h, allowing the unit to be used to power high-capacity three-phase equipment, pumping systems, industrial lines, ventilation and other critical infrastructure.

In the Canopy version, the generator has an internal fuel tank with a capacity of 350 litres, dimensions of 3090×1100×1852 mm and a weight of 1880 kg. The noise level for this version is 68/97 dB. The Pramac GDW 165 P 400/230 V is a practical solution for facilities requiring a powerful Perkins diesel generator with a high current reserve, a robust design and the capacity for intensive daily operation.
