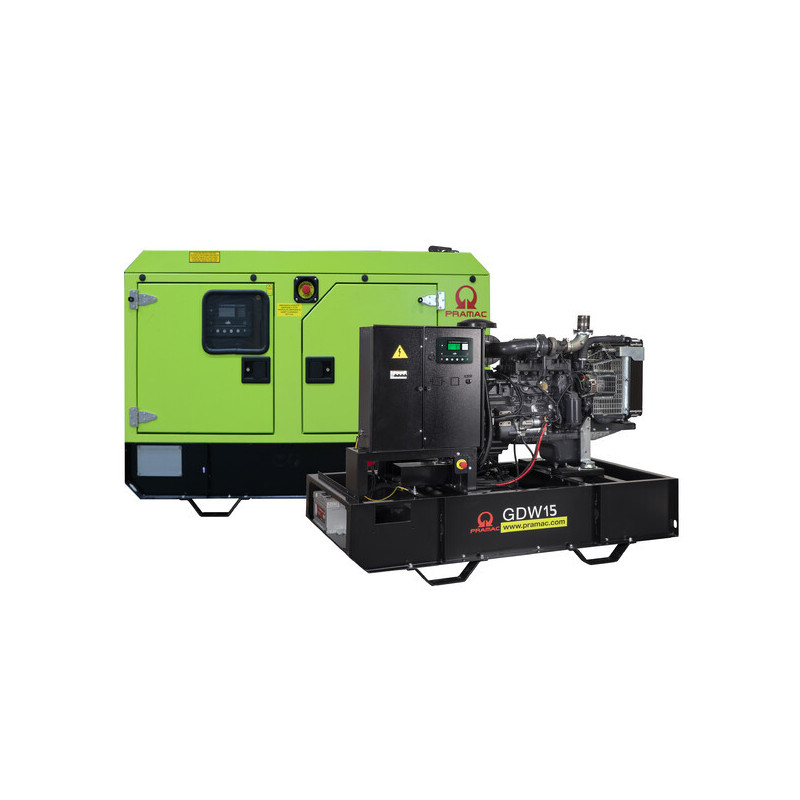

Pramac GDW 15 Y (A10) 400V diesel generator

The Pramac GDW15Y/FS5 is a professional three-phase diesel generator designed to provide a stable emergency and main power supply for installations where reliability, durability and easy starting are crucial. The model delivers a maximum power (ESP) of 11.8 kW and a rated power (PRP) of 10.6 kW, operates at a voltage of 400/230 V and a frequency of 50 Hz, and is therefore suitable for supplying power to technical installations, workshops, service areas, private properties and small commercial premises.

The generator is fitted with a Yanmar 3TNV88F-UGPGE diesel engine with a displacement of 1,642 cm³, a mechanical speed governor and a liquid cooling system. This configuration is well suited to stable operation under load and ensures reliable performance in working mode. The engine complies with the Stage V emissions standard, which is a significant advantage for the modern European market.

Another advantage of this model is the electric start. The generator is fitted with a 12 V/80 Ah battery, making starting up more convenient and practical during day-to-day operation. This is particularly useful at sites where the unit needs to be brought into operation quickly and without any additional effort on the part of the user.

The generator utilises a brushless Mecc Alte ECP3-2L4C alternator with protection class IP23. The model’s maximum current is 20 A, and fuel consumption at 100 per cent load is 3.31 l/h. When using the 68-litre fuel tank, the approximate running time at full load is 20.54 hours, making the generator a practical solution for long-term autonomous operation.

The sound-insulated design enhances user comfort. In the version with an enclosure, the noise level is 58/87 dB, meaning the generator can be considered without hesitation for installation at sites where it is important to minimise noise pollution. The design also simplifies maintenance access and day-to-day operation.

The Pramac GDW15Y/FS5 is a reliable diesel generator for anyone requiring three-phase power, electric start, a modern Yanmar engine, long running times and safe operation in either emergency or main power supply modes.
