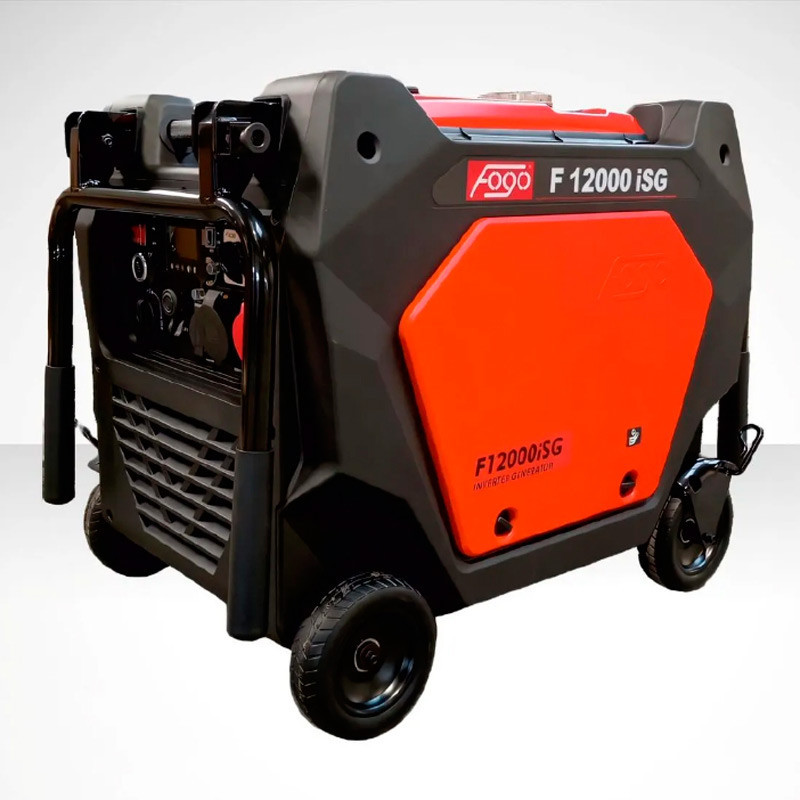

Fogo F 12000 iSG (Rato) petrol-gas inverter generator
€4,222.00
VAT included
- Voltage, V: 230/400
- Maximum power, kW: 9.5
- Rated power, kW: 9
- Start type: Manual-electric
- Runtime at 100% load, h: 5.5
33817
99Items
1 x 230 V 16 A socket, 1 x 230 V 32 A socket, 1 x 400 V 16 A socket
USB port
Overload indicator
Indicator for voltage (V), frequency (Hz), operating time (h) and power (%)
Electronic overload protection
Low oil level indicator
Connection to an automatic transfer switch (ATS)
Hose with pressure reducer
Fogo F 12000 iSG (Rato) Inverter Generator
The Fogo F 12000 iSG (Rato) generator is designed to power electronics and equipment sensitive to voltage fluctuations. Electronic regulation ensures high-quality smoothing of output voltage fluctuations and a ‘pure’ sine wave.
| Fuel | petrol | gas |
| Frequency | 50 Hz | 50 Hz |
| Voltage | 400 V/230 V | 400 V/230 V |
| Rated power 3-phase | 11.1 kVA/8.88 kW | 10.1 kVA/8.08 kW |
| Maximum power 3-phase | 11.8 kVA/9.44 kW | 10.7 kVA/8.56 kW |
| Rated current 3-phase | 16 A | 15.5 A |
| Rated power 1-phase | 9 kW | 8.1 kW |
| Maximum power 1 phase | 9.5 kW | 8.6 kW |
| Rated current 1 phase | 39 A | 35 A |
| Fuel tank | 33 l | |
| Fuel consumption at 100% load: | 6 l/h | 4 kg/h |
| Fuel consumption at 50% load | 3 l/h | 2 kg/h |
Advantages of the Fogo F 12000 iSG (Rato) generatorwith a dual-fuel engine:
Operation in all weather conditions: the generator’s performance is not affected by severe frost, high air temperatures or high ambient humidity.
Enhanced safety: electrical wires and cables are securely insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator against overheating when operating at maximum load.
Ease of use: the Fogo F 12000 iSG (Rato) generator is designed for domestic and professional use. Even a user with no experience can operate it.
Fuel independence: the Fogo F 12000 iSG (Rato) generator can be operated in both stationary and field conditions. When connected to a domestic gas supply (stationary use), it provides regular or continuous operation. For mobile (field) use, it can be fuelled with petrol.
Housing (plastic): the generator housing consists of a plastic casing that provides protection against moisture and reduces engine noise. The housing allows the generator to be used in all weather conditions.
ATS (automatic transfer switch): in the event of a power cut from the mains supply, the automatic system will start the generator (optional).
Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The durability of the power unit is ensured by the air-cooling system.
101313-121
99 Items
Data sheet
- Voltage, V
- 230/400
- Maximum power, kW
- 9.5
- Rated power, kW
- 9
- Frequency, Hz
- 50
- Maximum current, A
- 39
- Sockets
- 1х16A (230V), 1х32A (230V), 1х16A (400V)
- Fuel tank capacity, litres
- 33
- Runtime at 50% load, h
- 11
- Runtime at 100% load, h
- 5.5
- Sound level Lpa (7 m)/Lwa, dB
- 95
- Engine model
- Rato R500DN-Vi
- Type of engine
- Gas/petrol, single-cylinder, 4-stroke, air-cooled
- Fuel type
- Gas-gasoline
- Engine oil capacity, litres
- 1.2
- Engine capacity, cm³
- 500
- Voltage regulator
- Inverter
- Start type
- Manual-electric
- Net dimensions (LxWxH), mm
- 848х645х710
- Net weight, kg
- 105
- Power range, kW
- 5 - 10
- Number of phases
- 3
- Possibility of parallel connection
- No
- Fuel consumption, litres per hour
- 6
- Automatic transfer switch (ATS)
- Made to order
- Cooling system
- Air
- Warranty, months
- 12
