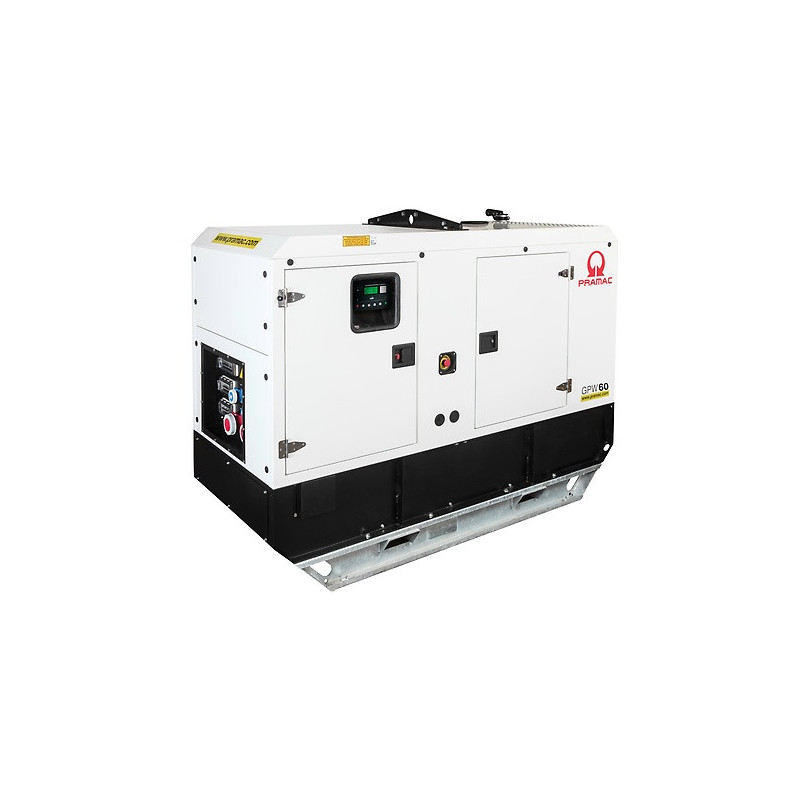

Pramac GPW 60 I diesel generator – BASIC PLUS 400V

The Pramac GPW 60 I - BASIC PLUS 400V is a professional diesel generator designed for sites requiring a substantial power reserve, a stable three-phase supply and the capacity for prolonged operation under heavy-duty conditions. The model delivers 48.0 kW of maximum power and 48.0 kW of rated power, making it well-suited for industrial premises, service centres, warehouse areas, construction sites, farms, technical infrastructure and backup power for commercial facilities, where not only power but also ease of day-to-day operation is important.

The BASIC PLUS version makes this model a practical solution specifically for real-world operating conditions. The generator and engine are mounted on a sturdy base frame, whilst the housing itself is constructed from a galvanised, soundproof and weatherproof casing with a door. This design better protects the unit from external influences, simplifies access during maintenance and makes the model more suitable for installation in open or semi-open technical areas. This is particularly important for a generator of this class, as it often operates not in laboratory conditions but at active sites where equipment must be durable and easy to service.

This version uses an FPT Iveco F 34-TCA diesel engine. This power unit is designed for stable operation under load and is suitable for professional use where the generator must reliably maintain the load over a long period. Combined with an electronically regulated MeccAlte alternator, the model is well suited for powering technical systems, engineering equipment, tools, pumps, lighting and other equipment requiring a reliable power source.

Particular attention should be paid to the electrical components. The generator is equipped with an ACP digital control panel, which makes operating the unit more convenient and intuitive in day-to-day use. The package also includes a 4-pole GCB2 generator circuit breaker and an MBS main battery switch. This package is well suited for professional use, where control, safety and ease of service access are all important. An additional advantage is the TYPE A 30mA RCD protection for all 400 V sockets, which enhances the safety of connecting three-phase loads.

Another major advantage of the model is the flexibility of load connection. The BASIC PLUS version features three 400 V sockets — 16A, 32A and 63A — as well as two 230 V sockets — CEE 16A and Schuko. This allows both powerful three-phase equipment and standard single-phase loads to be connected simultaneously without the need for unnecessary adapters or temporary solutions. For construction, service and technical sites, this configuration is particularly convenient, as a single unit can handle several types of load at once.

Another strong point of this model is its autonomy. The generator is equipped with a 209-litre fuel tank, and the running time at 75% load is 20.2 hours. This is an excellent figure for a diesel generator of this power, allowing the model to be used not only as a backup source but also as a fully-fledged operational solution for long shifts without frequent refuelling. A large fuel tank is particularly useful where the generator is operating at a remote site or in situations where refuelling stops are undesirable.

The model’s practical features are also well thought out. The package includes a plastic tank with an oil sump, an oil drain pump, a lifting eye and protection for hot parts. These may seem like minor details at first glance — in practice, it is precisely these features that make the generator more convenient to transport, maintain and operate on site.

The model measures 2400×1040×1745 mm and weighs 1507 kg. The noise level is 64 dB at 7 m, which is a good figure for a generator of this power class. The Pramac GPW 60 I - BASIC PLUS 400V is a robust solution for those who need a well-equipped three-phase diesel generator with a long runtime, a user-friendly digital control panel, extensive connectivity options and reliable performance in professional environments.
