Estimated dispatch: 24–26 November (3–5 working days after payment)
1 socket, 63 A, 400 V
Undervoltage release
2 sockets, 16 A, 230 V, Schuko
Circuit breakers 400 V
Circuit breakers 230 V
Residual current protection
Timer V, Hz, A, kVA
Kit for connecting to the tractor
Gearbox filled with oil

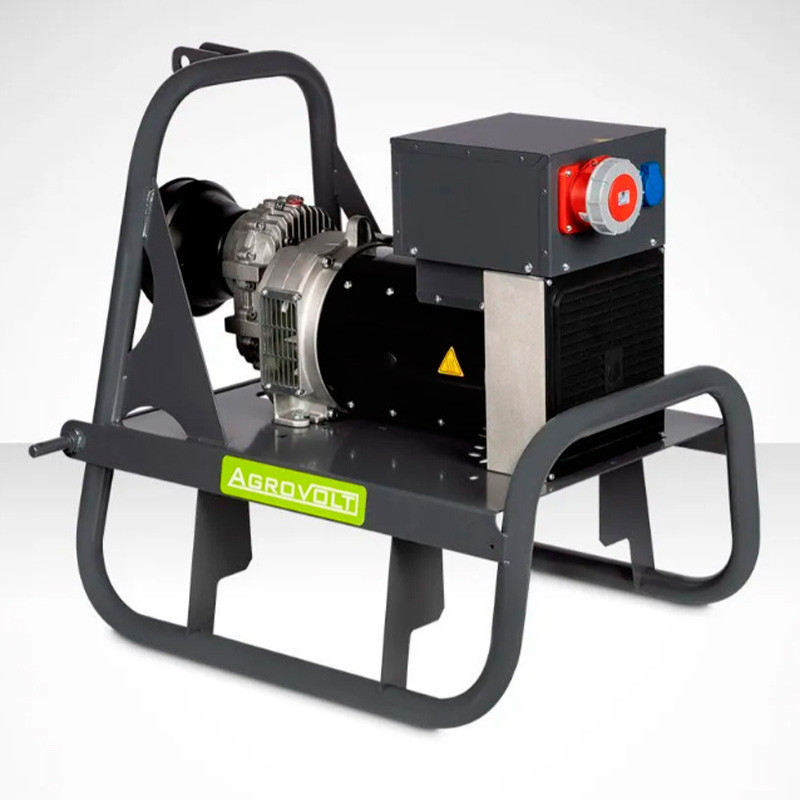

The Fogo Agrovolt AV 38 generator is a powerful, self-contained unit with high performance, which can be easily attached to the tractor’s PTO shaft and reliably supplies a steady current without fluctuations to all machinery required in field conditions.
It is low-maintenance and easy to operate. It has proven its worth when working in difficult weather conditions. It is resistant to temperature fluctuations and high humidity.
To ensure the generator operates successfully and has a long service life, simply familiarise yourself with the instructions and follow them carefully. The only requirement is to keep the working parts of the generator clean and protect them from particularly aggressive alkaline or acidic substances.
| Voltage, V | 400 | 230 |
| Power factor, cos ⱷ | 0.8 | 1 |
| Maximum power, kVA/kW | 41.8/33.4 | 16.7/13.4 |
| Rated power, kVA/kW | 38/30.4 | 15.2/12.2 |
| Rated current, A | 55.1 | 66.1 |
| Output shaft | ||
| Speed, revolutions per minute | 430 | |
| Power, kW/PS | 36/49 | |
| Power requirement at the PTO, kW/PS | 59/80 | |
| Torque, Nm | 1049 | |
