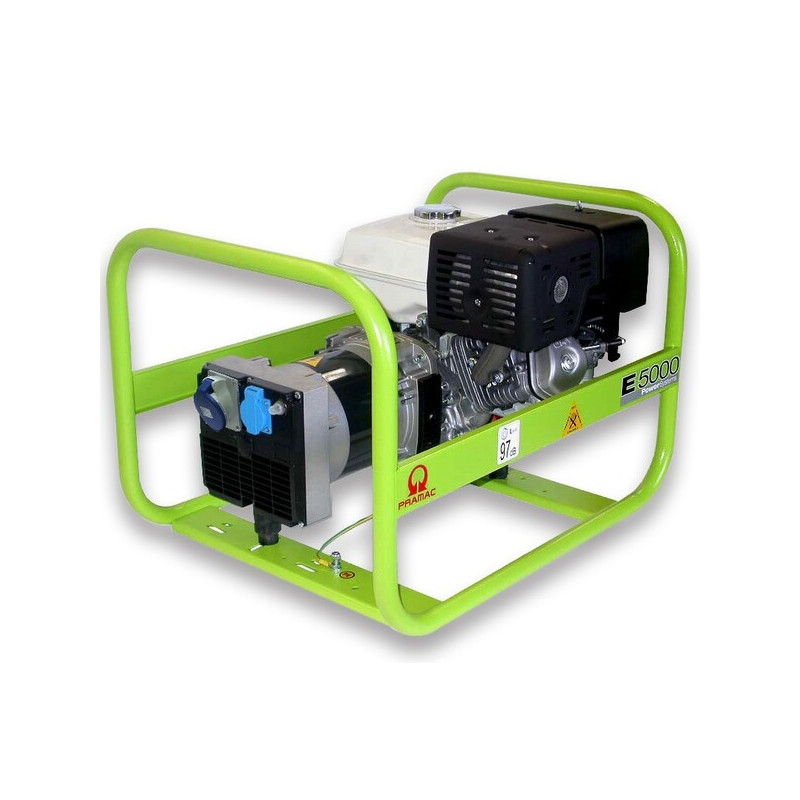

Pramac E 5000 230V petrol generator

ThePramac E5000 is a professional single-phase petrol generator designed to provide a stable 230 V / 50 Hz backup and operational power supply. This model is part of Pramac’s range of affordable professional generators and combines good performance, a reliable Honda engine and a simple design for everyday use.

The generator delivers 4.6 kW of maximum power (ESP) and 3.9 kW of continuous power (COP). This is sufficient to power lighting, domestic appliances, pumps, workshop equipment and power tools. Page 3 of the PDF also lists Thermal Protection and Oil Guard, and for connecting loads, there is 1 Schuko 230V 16A IP54 socket and 1 CEE 230V 16A IP44 socket.

The model uses a reliable 270 cm³ air-cooled Honda GX270 petrol engine. The generator features a manual start (Recoil), a mechanical speed regulator and a 5.3-litre fuel tank. Fuel consumption is 2.22 l/h at 100% load and 1.67 l/h at 75% load. Runtime reaches 2.39 hours at 100% load and 3.17 hours at 75% load.

The generator is equipped with a brushless NSM alternator with insulation class H and IP23 protection. The voltage regulation system is capacitor-based. The permissible voltage deviation is +5 / -10% (cosφ1). The model’s dimensions are 715 × 540 × 490 mm, and its dry weight is 61 kg. The noise level is 97 dB(A) LWA, and the sound pressure at a distance of 7 m is 69 dB.
