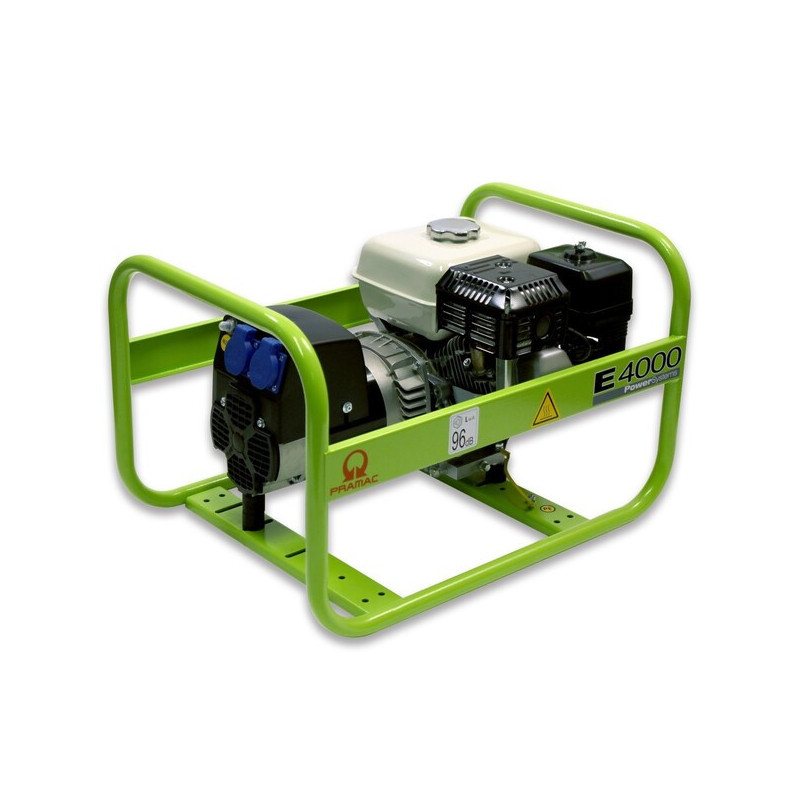

Pramac E 4000 230V petrol generator

The Pramac E4000 is a compact, single-phase, professional-grade petrol generator designed to provide a stable emergency and operational power supply at 230 V / 50 Hz. This model is part of Pramac’s range of affordable professional generators and combines good performance, a reliable Honda engine and a simple design for everyday use.

The generator delivers a maximum power output of 3.0 kW (ESP) and a rated power output of 2.6 kW (COP). This is sufficient to power lighting, domestic appliances, pumps, workshop equipment and power tools. Page 3 of the PDF document also lists Thermal Protection and Oil Guard, and two 230 V 16 A IP54 Schuko sockets are provided for connecting loads.

The model is fitted with a reliable, air-cooled Honda GX200 petrol engine with a displacement of 196 cm³. The generator features a manual start (recoil), a mechanical speed regulator and a fuel tank with a capacity of 3.6 l. Fuel consumption is 1.57 l/h at 100 per cent load and 1.18 l/h at 75 per cent load. The running time is 2.3 hours at 100 per cent load and 3.05 hours at 75 per cent load.

The generator is fitted with a brushless NSM alternator with insulation class H and protection rating IP23. The voltage regulation system is a capacitor system. The permissible voltage deviation is +5 / -10 per cent (cosφ1). The model’s dimensions are 640 × 458 × 400 mm, and its dry weight is 38 kg. The noise level is 96 dB(A) LWA, and the sound pressure level at a distance of 7 m is 68 dB.
