• New

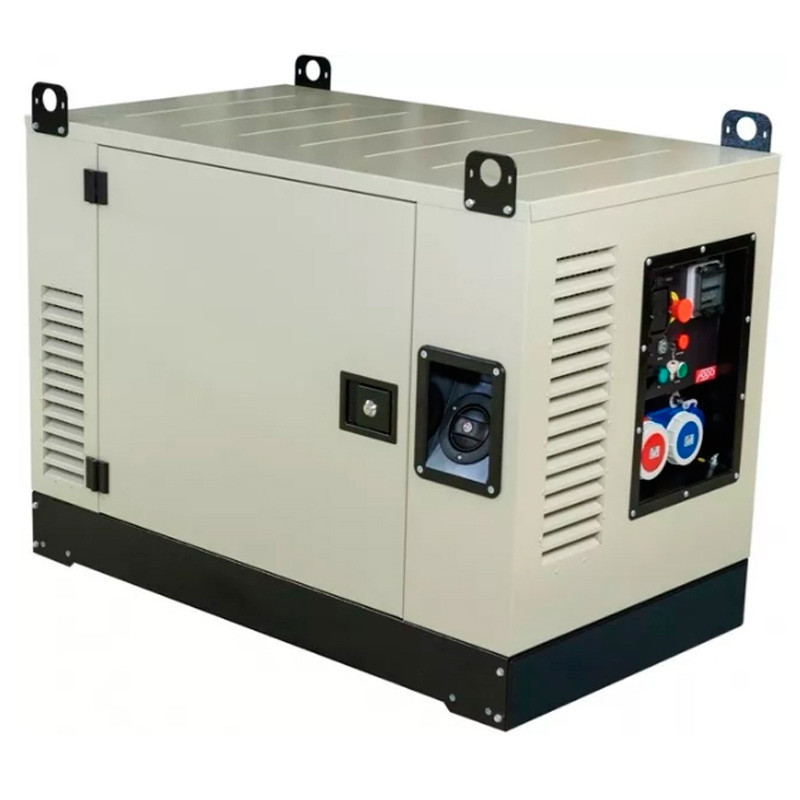

    Fogo FV 11001 CRA petrol generator (Vanguard)
    Fogo FV 11001 CRA petrol generator (Vanguard)

    Fogo FV 11001 CRA petrol generator (Vanguard)

    €7,628.00
    VAT included
    In stock
    • Voltage, V: 230
    • Maximum power, kW: 10.5
    • Rated power, kW: 9.5
    • Start type: Manual-electric
    99Items

    AVR

    230 V 16 A socket

    230 V 32 A socket

    230 V 63 A socket

    Overload protection

    Oil pressure sensor

    Silencer with connection for exhaust hose

    Battery

    Connection to automatic switch

    Hour meter

    Quantity :

    Fogo FV 11001 CRA (Vanguard) petrol generator

    The Fogo FV 11001 CRA (Vanguard) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.

    Advantages ofthe Fogo FV 11001 CRA (Vanguard) petrolgenerator:

    Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.

    Casing (metal): a generator with a metal casing offers the highest level of protection not only against mechanical damage to the unit, but also protects the generator from the elements. This casing is coated with an anti-corrosion finish and powder-coated, which extends the service life of the housing for many years. It also provides additional sound insulation.

    Enhanced safety: electrical wires and cables are securely insulated. The unit’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.

    Ease of use: the Fogo FV 11001 CRA (Vanguard) generator is designed for domestic and professional use. Even a user with no experience can operate it.

    AVR (Automatic Voltage Regulator): should the power supply from the mains be interrupted, the system will automatically start the generator.

    AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.

    Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The housing has an anti-corrosion coating. The durability of the power unit is ensured by an air-cooling system.

    Fogo
    101313-88
    99 Items

    Data sheet

    Voltage, V
    230
    Maximum power, kW
    10.5
    Rated power, kW
    9.5
    Frequency, Hz
    50
    Maximum current, A
    41.3
    Sockets
    1х63A (230V), 1х32A (230V), 1x16А (230V)
    Fuel tank capacity, litres
    50
    Runtime at 75% load, hours
    10.2
    Sound level Lpa (7 m)/Lwa, dB
    94
    Engine model
    Vanguard 3854
    Type of engine
    2-cylinder, 4-stroke petrol engine with air cooling
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.7
    Engine capacity, cm³
    627
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual-electric
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    1100х600х830
    Net weight, kg
    222
    Power range, kW
    5 - 10
    Number of phases
    1
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    4.9
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12
