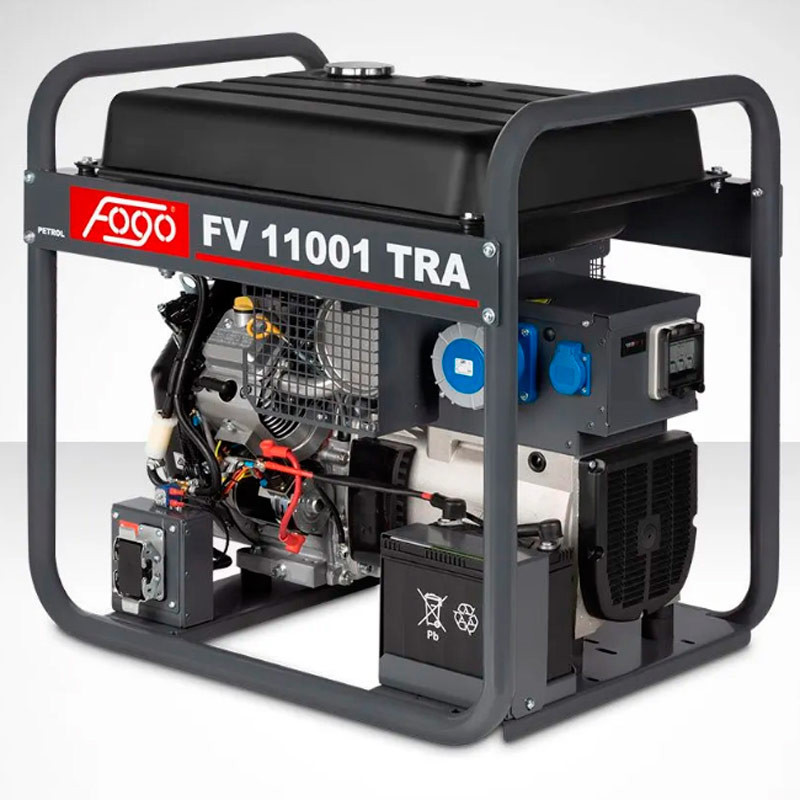

    Fogo FV 11001TRA petrol generator (Vanguard)
    Fogo FV 11001TRA petrol generator (Vanguard)
    Fogo FV 11001TRA petrol generator (Vanguard)
    Is this product right for me? Ask an expert

    We use your details solely to process your enquiry and to contact you. More information in our Privacy Policy.



    Fogo FV 11001TRA petrol generator (Vanguard)

    €5,393.00
    VAT included
    14-day right of withdrawal

    Estimated dispatch: 24–26 November (3–5 working days after payment)

    In stock
    • Rated power, kW: 10
    • Maximum power, kW: 11
    • Voltage, V: 230
    • Start type: Manual-electric
    • Fuel tank capacity, litres: 45
    MPN:
    37127
    101313-87

    The Fogo FV 11001 TRA is a particularly powerful single-phase petrol generator fitted with a Briggs & Stratton Vanguard 3854 (627 cm³) – the ideal automatic emergency power solution for detached houses, medical practices and businesses with high 230 V power requirements.

    Thanks to its connection for an ATS switch-over system, it starts automatically in the event of a power cut.

    With a rated output of 10 kW (max. 11 kW) and up to 43.5 A, it can handle even heavy loads.

    Features: Sockets 1× 230 V/63 A, 1× 230 V/16 A, electric start, overload protection, oil pressure sensor, operating hours counter, battery.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 11001TRA (Vanguard)petrol generator

    The Fogo FV 11001TRA (Vanguard) generator can be used as an emergency power source to supply electricity to country houses, repair teams, building sites, etc.

    Advantages of the Fogo FV 11001TRA (Vanguard) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Enhanced safety: The electrical wiring and cables are reliably insulated. The earthed casing protects against electric shock. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo FV 11001TRA (Vanguard) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is prepared for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures overload-free operation of the generator and prevents voltage fluctuations.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The frame is corrosion-protected. The unit’s longevity is ensured by an air-cooling system.

    Fogo
    101313-87
    99 Items

    Data sheet

    Voltage, V
    230
    Maximum power, kW
    11
    Rated power, kW
    10
    Frequency, Hz
    50
    Maximum current, A
    43.5
    Sockets
    1x16А (230V), 1х63A (230V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    9.2
    Sound level Lpa (7 m)/Lwa, dB
    97
    Engine model
    Vanguard 3854
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.7
    Engine capacity, cm³
    627
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual-electric
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    790х580х765
    Net weight, kg
    133
    Power range, kW
    10 - 20
    Number of phases
    1
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    4.9
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37127
