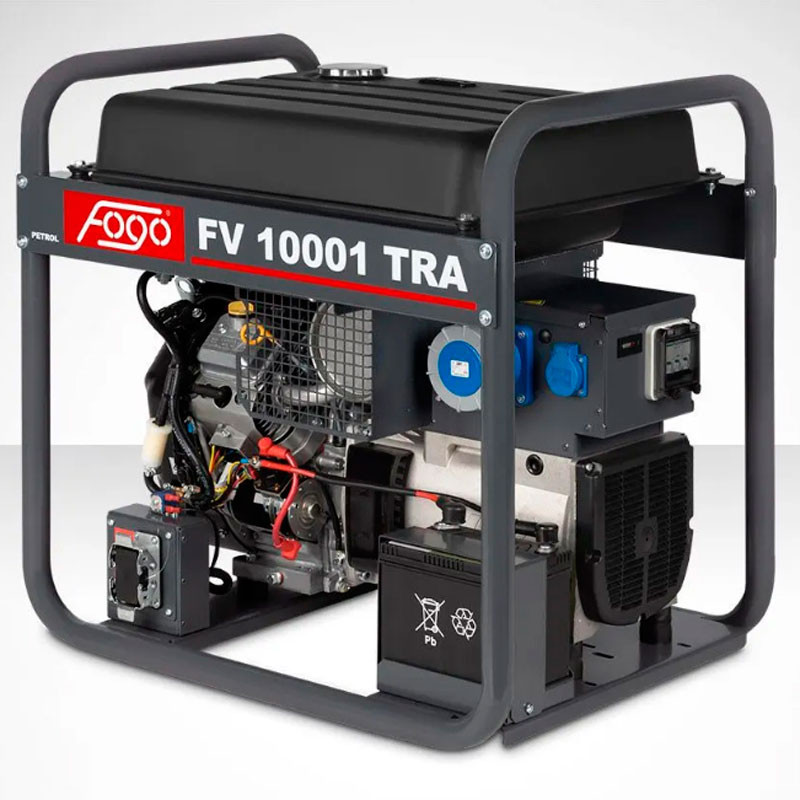

    Fogo FV 10001 TRA petrol generator (Vanguard)
    Fogo FV 10001 TRA petrol generator (Vanguard)
    Fogo FV 10001 TRA petrol generator (Vanguard)

    Fogo FV 10001 TRA petrol generator (Vanguard)

    €4,932.00
    VAT included
    Return policy: 14
    In stock
    • Voltage, V: 230
    • Maximum power, kW: 9.5
    • Rated power, kW: 8.6
    • Start type: Manual-electric
    MPN:
    37125
    101313-84

    AVR

    230 V 16 A socket

    230 V 63 A socket

    Overload protection

    Oil pressure sensor

    Silencer with exhaust adapter

    Battery

    Connection to the ATS control panel

    Operating hours counter

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 10001 TRA (Vanguard)petrol generator

    The Fogo FV 10001 TRA (Vanguard) generator can serve as an emergency power source to supply electricity to a country house, a repair team, a building site, etc.

    Advantages of the Fogo FV 10001 TRA (Vanguard) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Enhanced safety: The electrical wiring and cables are reliably insulated. The earthed casing protects against electric shock. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo FV 10001 TRA (Vanguard) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is ready for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures overload-free operation of the generator and prevents voltage fluctuations.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The frame is corrosion-protected. The unit’s longevity is ensured by an air-cooling system.

    Fogo
    101313-84
    99 Items

    Data sheet

    Voltage, V
    230
    Maximum power, kW
    9.5
    Rated power, kW
    8.6
    Frequency, Hz
    50
    Maximum current, A
    37.4
    Sockets
    1x16А (230V), 1х63A (230V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    10
    Sound level Lpa (7 m)/Lwa, dB
    96
    Engine model
    Vanguard 3564
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.7
    Engine capacity, cm³
    570
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual-electric
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    790х580х765
    Net weight, kg
    132
    Power range, kW
    0.5 - 1
    Number of phases
    1
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    4.5
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37125
