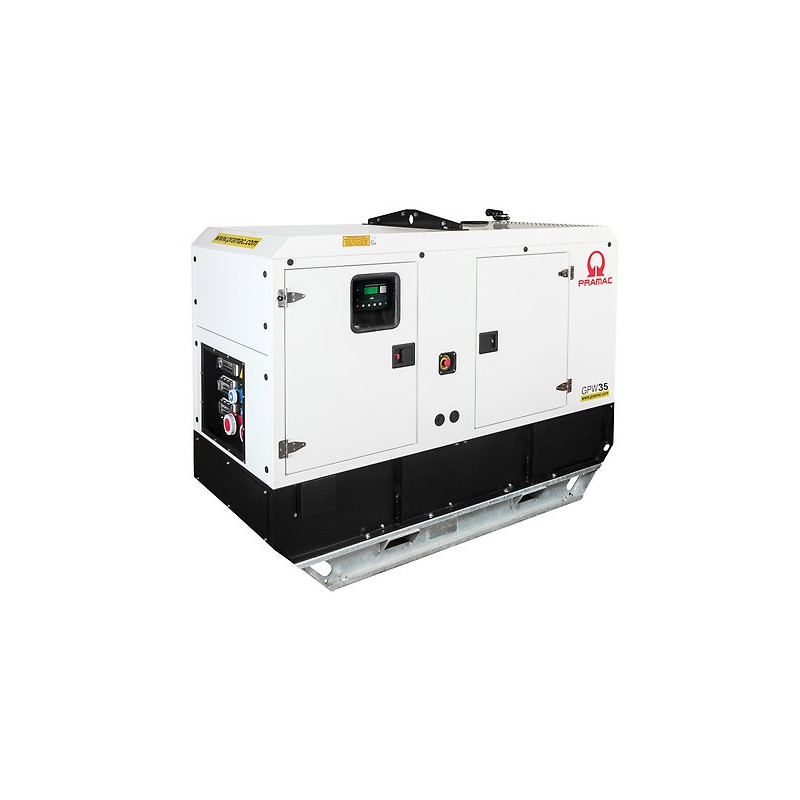

Pramac GPW 35 Y diesel generator – BASIC PLUS 400V

The Pramac GPW 35 Y - BASIC PLUS 400V is a professional three-phase diesel generator designed for sites requiring a reliable stand-alone power supply, convenient connection of various loads and the ability to handle stable daily operation. The model delivers 30.72 kW of maximum power and 28.0 kW of rated power, making it well-suited for construction sites, service areas, industrial premises, farms, technical facilities, warehouses and commercial premises where a reliable three-phase power supply is required.

The BASIC PLUS version makes this model better equipped and more practical for real-world use. The generator features a galvanised, soundproof and weatherproof enclosure with a door, which better protects the unit from external influences whilst ensuring convenient access for maintenance. This is a significant advantage for a generator of this class, as the equipment often operates not in ideal conditions, but on construction sites, in industrial yards, on open technical sites, or in areas with active daily use.

This model is fitted with a Yanmar 4TNV98 engine and is certified to meet Stage V emissions standards. This is a more modern configuration for a professional diesel generator, designed for reliable operation and to meet current requirements for this type of equipment. The combination of this engine with a MeccAlte generator featuring electronic regulation makes the model a good choice for sites where stable output parameters and reliable operation under load are essential.

Particular attention should be paid to the electrical components. These include ACP digital control, a 4-pole GCB2 generator circuit breaker and an MBS main battery switch. This set of features makes the generator more user-friendly in day-to-day operation, simplifies monitoring of the unit’s performance and is better suited to professional applications than very basic solutions. For the user, this means more intuitive control, better manageability during start-up and operation, as well as more convenient maintenance of the system as a whole.

Another practical advantage is the set of sockets, which allows you to connect various types of equipment without the need for additional external adapters. The BASIC PLUS package includes three 400 V sockets — 16A, 32A and 63A — as well as two 230 V sockets — CEE 16A and Schuko. This is particularly convenient where both three-phase and single-phase equipment is used simultaneously: tools, lighting, pumps, compressors, auxiliary electrical systems or service equipment. Additionally, all 400 V sockets feature TYPE A 30mA RCD protection, which enhances connection safety.

In terms of autonomy, the model also looks promising. The generator has an 80-litre fuel tank, and the table on the slide indicates 12.9 hours of operation at 75% load. This is a good figure for equipment of this class, allowing the model to be used with confidence for long working shifts or in standby mode without the need for frequent refuelling. Based on this figure, the estimated fuel consumption at 75% load is approximately 6.20 l/h, and the estimated consumption at 100% load is approximately 8.27 l/h. Accordingly, the estimated operating time at full load can be estimated at approximately 9.67 hours.

The model measures 2200×1020×1506 mm and weighs 1190 kg. The noise level is 61 dB at 7 m, which is a good figure for a diesel generator of this power class. The package also includes an oil drain pump, hot part protection and a lifting eye, making the generator more convenient for servicing, transport and day-to-day operation on site.

The Pramac GPW 35 Y - BASIC PLUS 400V is a robust solution for those who need a well-equipped three-phase diesel generator with a modern Yanmar engine, digital control, reliable electrical components and a practical design for professional use. The model successfully combines power, ease of connection, good autonomy and features that significantly simplify operation in real-world conditions.
