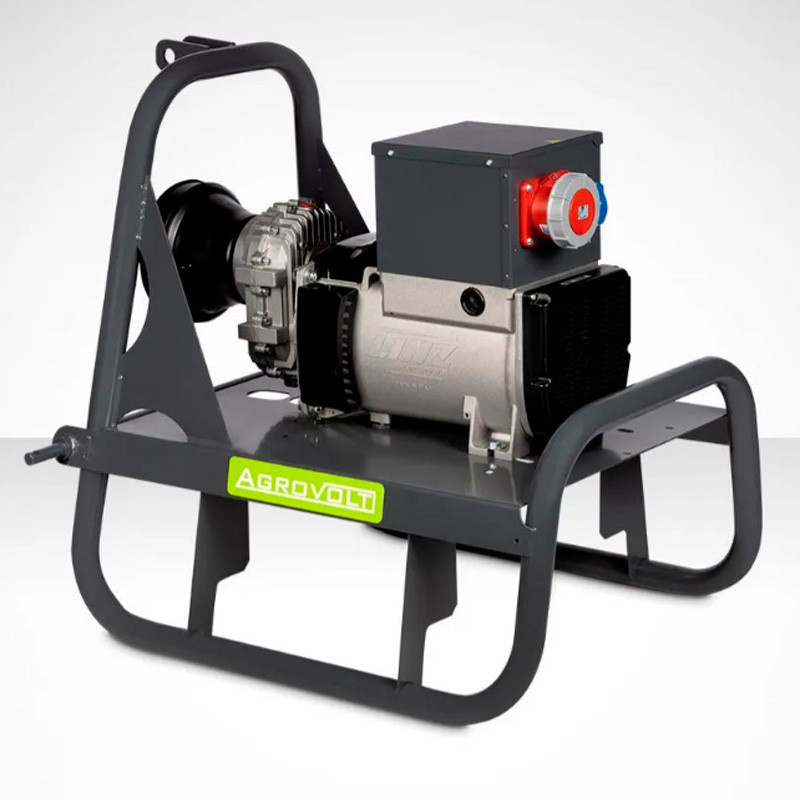

    Fogo Agrovolt AV 27 tractor generator
    Fogo Agrovolt AV 27 tractor generator
    Fogo Agrovolt AV 27 tractor generator
    Is this product right for me? Ask an expert

    We use your details solely to process your enquiry and to contact you. More information in our Privacy Policy.



    Fogo Agrovolt AV 27 tractor generator

    €3,678.00
    VAT included
    14-day right of withdrawal

    Estimated dispatch: 24–26 November (3–5 working days after payment)

    In stock
    • Rated power, kW: 21.6
    • Maximum power, kW: 23.8
    • Voltage, V: 230/400
    • Maximum current, A: 39.1
    • Number of phases: 3
    101313-113

    1 socket, 63 A, 400 V

    Undervoltage release

    2 sockets, 16 A, 230 V, Schuko

    Circuit breakers 400 V

    Circuit breakers 230 V

    Residual current protection

    Timer V, Hz, A, kVA

    Kit for connecting to the tractor

    Gearbox filled with oil

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    The Fogo Agrovolt AV 27 generator is a powerful, self-contained unit with high performance, which can be easily attached to the tractor’s PTO shaft and reliably supplies a steady current without fluctuations to all machinery required in field conditions.

    It is low-maintenance and easy to operate. It has proven itself in use under difficult weather conditions. It is resistant to temperature fluctuations and high humidity.

    To ensure the generator operates successfully and has a long service life, simply familiarise yourself with the instructions and follow them carefully. The only requirement is to keep the working parts of the generator clean and protect them from particularly aggressive alkaline or acidic substances.

    Voltage, V 400 230
    Power factor, cos ⱷ 0.8 1
    Maximum power, kVA/kW 29.7/23.8 11.9/9.5
    Rated power, kVA/kW 27/21.6 10.8/8.64
    Rated current, A 39.1 47
    Power take-off shaft
    Speed, revolutions per minute 430
    Power, kW/PS 26/36
    Power requirement at the PTO shaft, kW/PS 43/59
    Torque, Nm 762

    Standard equipment

    • 1 socket, 63 A, 400 V
    • Undervoltage release
    • 2 sockets, 16 A, 230 V, Schuko
    • Automatic circuit breakers 400 V
    • Circuit breakers 230 V
    • Residual current protection
    • Timer V, Hz, A, kVA
    • Kit for connecting to the tractor
    • Gearbox filled with oil
    Fogo
    101313-113
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    23.8
    Rated power, kW
    21.6
    Frequency, Hz
    50
    Maximum current, A
    39.1
    Sockets
    2х16А 230V, 1х63А 400V
    Engine oil capacity, litres
    0.9
    Voltage regulator
    Compound
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    950х800х933
    Net weight, kg
    149
    Power range, kW
    20 - 50
    Number of phases
    3
    Manufacturer
    Fogo
    Warranty, months
    12
