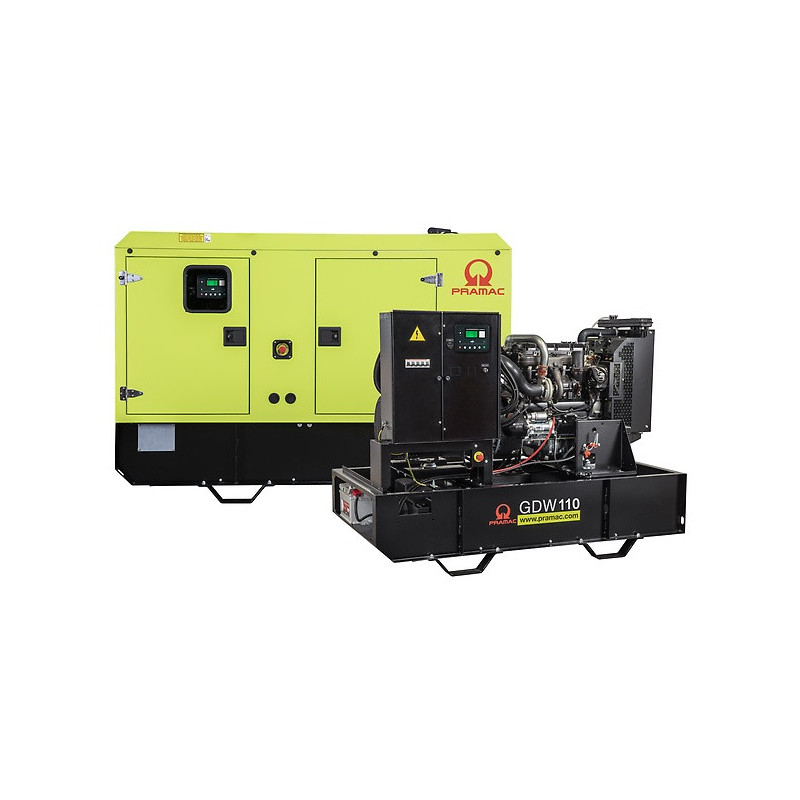

Pramac GDW 110 P (B15) FS3A 400V diesel generator

The Pramac GDW 110 P 400/230 V Stage IIIA is a powerful three-phase diesel generator designed for sites requiring a stable power supply with high reliability and robust performance under heavy loads. The model delivers 88.0 kW of maximum power and 80.0 kW of rated power, making it suitable for production areas, technical sites, service centres, warehouse facilities and other sites with high electricity consumption.

This version utilises a Perkins 1104D-E44TAG2 diesel engine with a displacement of 4,399 cm³, featuring turbocharging and an electronic speed governor. This configuration allows for more precise maintenance of operating parameters and ensures more stable generator performance under load. Liquid cooling helps maintain an optimal temperature during prolonged operation, which is particularly important for equipment in this power class.

An electric starter and a 12 V / 80 Ah battery are provided for starting, making it convenient to put the generator into operation in both standby and continuous use modes. This solution is well suited for systems requiring a quick start and readiness for operation without unnecessary delays.

The model operates at 400/230 V, 50 Hz and is three-phase. The generator is fitted with a Mecc Alte ECP34-2S 4C brushless alternator with insulation class H and protection rating IP23. The maximum current is 159 A, and fuel consumption at 100% load is 22.43 l/h. This configuration allows the generator to be used to power high-power three-phase equipment, pumping stations, ventilation, lighting and industrial units.

In the Canopy version, the model features an internal 350-litre fuel tank, dimensions of 2757×1120×1846 mm, a weight of 1477 kg and a noise level of 68/97 dB. The Pramac GDW 110 P 400/230 V Stage IIIA is a practical choice for sites requiring a powerful Perkins generator with a more modern environmental standard, electronic speed control and the capacity for intensive daily operation.
