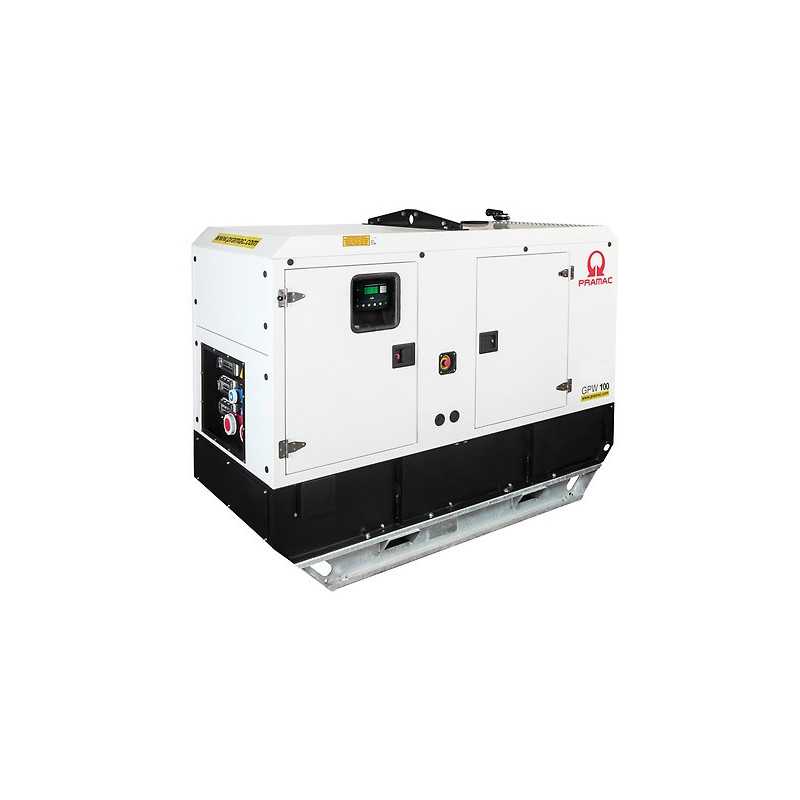

Pramac GPW 100 I - BAU 400V diesel generator

The Pramac GPW 100 I - BAU 400V is a powerful three-phase diesel generator designed for sites requiring a stable power supply, high durability and reliable operation during extended periods. The model delivers 83.4 kW of maximum power and 80.0 kW of rated power, making it well-suited for industrial sites, agricultural enterprises, service centres, construction sites, warehouse complexes, engineering facilities and backup power for commercial infrastructure, where the generator must not only start up but also operate reliably under heavy loads.

The power unit of the model is the FPT F36ETVP02.A94 engine, compliant with Stage V standards. This is a 4-cylinder in-line diesel engine with a displacement of 3,600 cm³, operating at 1,500 rpm and featuring a turbocharging system with aftercooling. For a generator of this class, this is a very successful configuration, as it provides good torque reserves, stable operation under load and a more modern level of technical execution. Additionally, it features an electronic speed governor, which helps maintain operating parameters more accurately, whilst liquid cooling ensures a reliable temperature regime during prolonged operating cycles. This particular power unit is well-suited for sites where the generator needs to operate regularly rather than intermittently.

The model is equipped with an electric start, and the technical specifications specifically list one 12 V / 101 Ah battery. For a unit of this power rating, this is a sound and practical configuration, ensuring a reliable start-up and good readiness for operation in emergency scenarios. When the mains supply fails at a site, it is particularly important that the generator starts up quickly and reliably without unnecessary delays, and this configuration meets these requirements well. This makes the model suitable for both standby operation and regular use at technical facilities.

The generator’s electrical components also meet the model’s professional standards. The unit operates at 400/230 V, 50 Hz and is three-phase. It uses a Mecc Alte ECP34-2S 4C brushless alternator with insulation class H and protection rating IP23. The maximum current is 150 A, the rated current is 144 A, and the circuit breaker is rated at 160 A. This configuration allows the model to be used for heavy-duty three-phase loads: engineering systems, pumping stations, ventilation equipment, compressors, service infrastructure, lighting of large areas and technical lines, where a reliable power source with a good current reserve is required.

One of the Pramac GPW 100 I - BAU 400V’s greatest strengths is its autonomy. The generator is equipped with a 350-litre fuel tank, and at 75% load, the running time is 21.05 hours. For a model of this class, this is an impressive figure, allowing the generator to be used with confidence for long shifts or as a backup source without the need for constant refuelling. Diesel consumption is 16.63 l/h at 75% load and 22.58 l/h at 100% load. The approximate running time at full load is around 15.50 hours, which is also a very good result for a professional diesel generator in this segment.

As the model complies with Stage V, the DEF system must also be taken into account here. The documentation specifically mentions a 43-litre DEF tank, with a consumption rate of 0.798 l/h at 75% load and 1.084 l/h at 100% load. This is an important practical detail for real-world operation, as it allows you to plan not only the diesel supply but also the AdBlue/DEF supply. In return, the user gets a more modern environmental standard and a more up-to-date technical solution for professional use.

The technical PDF for this series lists the available ACP and MPP panels. The ACP is suitable for automatic backup power supply systems, whilst the MPP is designed for more complex solutions involving parallel operation. It is also noted that the socket panel is optional, and the socket set is specified at the time of ordering. This means that the model can be adapted to a specific site and the required load connection method without being rigidly tied to a single configuration.

Structurally, the generator is housed in a soundproof, weatherproof enclosure that reduces noise and protects the unit from external influences. The design features a large service door, anti-vibration mounts, a sturdy base, a lifting point and an upper lifting bridge. This makes the model more practical for installation, transport and regular maintenance. The canopy version measures 2757×1120×1846 mm and weighs 1624 kg. The noise level for the canopy version is 68/97 dB, whilst the extra-silent version in this series offers even lower noise levels.

The Pramac GPW 100 I - BAU 400V is an excellent choice for those who need a modern diesel generator with an FPT Stage V engine, good runtime, a substantial current reserve and the ability to handle stable daily operation. If there is a separate slide for the BAU version detailing equipment such as MBS, TWF, WSP, BFB, GDH, RCDB, QFC or Dummy-Load, these can be accurately and correctly incorporated into the description as the specific advantages of this configuration, without mixing them up with the basic technical series.
