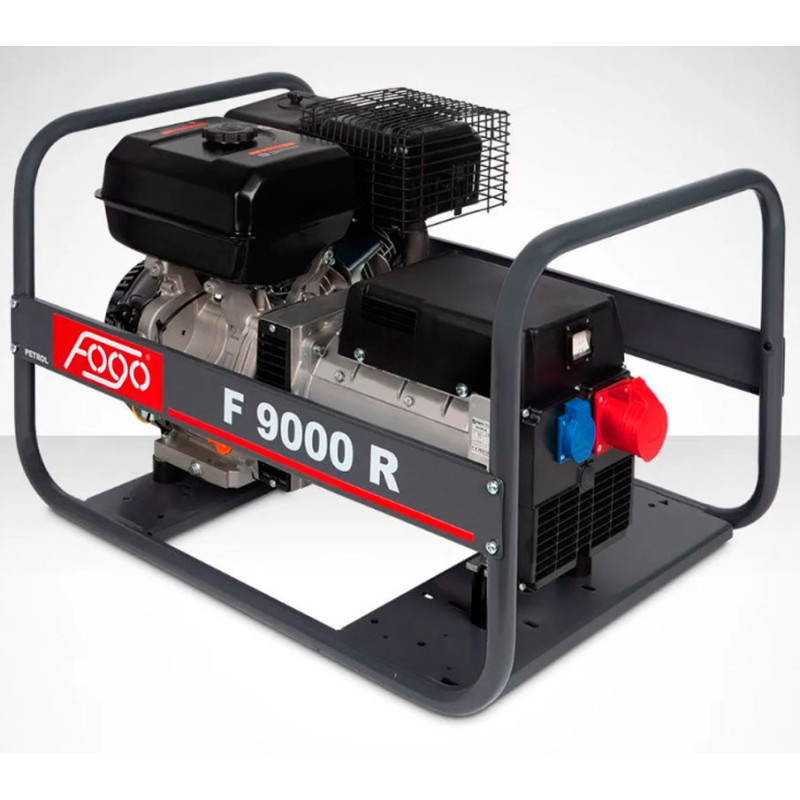

Fogo F 9000 petrol generator (Rato)
€2,006.00
VAT included
Return policy: 14
- Voltage, V: 230/400
- Maximum power, kW: 6.6 (400 V), 5.7 (230 V)
- Rated power, kW: 6 (400 V), 5.2 (230 V)
- Start type: Manual
MPN:
37074
101313-72
A powerful three-phase generator for demanding applications on building sites, in yards and in workshops, as well as for providing emergency power to larger premises.
It powers three-phase machinery such as compressors, concrete mixers or log splitters, whilst also delivering plenty of power for 230 V appliances.
The powerful Rato R 420 engine (420 cm³, 4-stroke) delivers 6.0 kW at 400 V and 5.2 kW at 230 V (max. 6.6 / 5.7 kW).
The AVR system ensures a stable voltage.
Overload protection and an oil level sensor reliably protect the engine and generator from damage.
Expert advice
On-time delivery
Technical Support
Secure payment
Fogo F 9000 (Rato) petrol generator
The Fogo F 9000 (Rato) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.
Advantages ofthe Fogo F 9000 (Rato) petrolgenerator:
Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.
Enhanced safety: electrical wires and cables are securely insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.
Ease of use: the Fogo F 9000 (Rato) generator is designed for domestic and professional use. Even a user with no experience can operate it.
Portability: the generator’s relatively compact dimensions allow it to be moved quickly and easily around a country estate or construction site.
AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage spikes.
Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The frame has an anti-corrosion coating. The durability of the power unit is ensured by an air-cooling system.
101313-72
99 Items
Data sheet
- Voltage, V
- 230/400
- Maximum power, kW
- 6.6 (400 V), 5.7 (230 V)
- Rated power, kW
- 6 (400 V), 5.2 (230 V)
- Frequency, Hz
- 50
- Maximum current, A
- 22.6
- Sockets
- 1х16А 230V, 1х16А 400V
- Fuel tank capacity, litres
- 6.5
- Runtime at 75% load, hours
- 2.2
- Sound level Lpa (7 m)/Lwa, dB
- 99
- Engine model
- Rato R 420
- Type of engine
- Petrol, single-cylinder, 4-stroke, air-cooled
- Fuel type
- Unleaded petrol
- Engine oil capacity, litres
- 1.1
- Engine capacity, cm³
- 420
- Voltage regulator
- Intelligent AVR system
- Start type
- Manual
- Protection class
- IP23
- Net dimensions (LxWxH), mm
- 790x580x505
- Net weight, kg
- 82
- Power range, kW
- 5 - 10
- Number of phases
- 3
- Possibility of parallel connection
- No
- Fuel consumption, litres per hour
- 2.9
- Automatic transfer switch (ATS)
- No
- Cooling system
- Air
- Warranty, months
- 12
Specific References
- MPN
- 37074
