    Fogo F 6540 petrol generator (Rato)
    Fogo F 6540 petrol generator (Rato)
    Fogo F 6540 petrol generator (Rato)
    Fogo F 6540 petrol generator (Rato)
    Fogo F 6540 petrol generator (Rato)

    Fogo F 6540 petrol generator (Rato)

    €2,355.00
    VAT included
    Return policy: 14
    In stock
    • Voltage, V: 230/400
    • Maximum power, kW: 4.4 (400 V), 3.3 (230 V)
    • Rated power, kW: 4 (400 V), 3 (230 V)
    • Start type: Manual
    MPN:
    35603
    101313-64

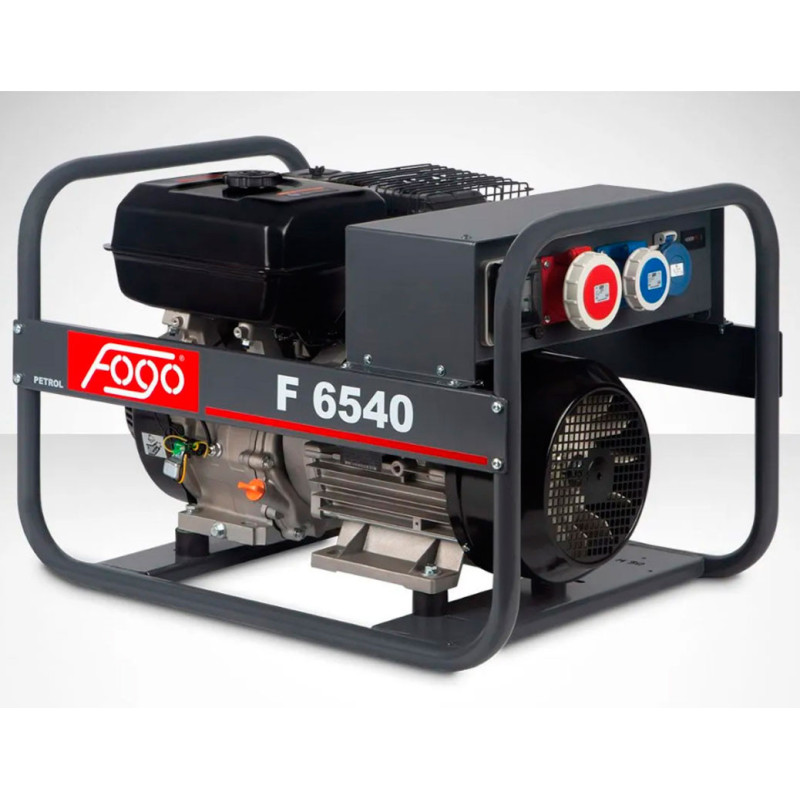

    The Fogo F 6540 is a three-phase petrol generator with a rated output of 4 kW and a maximum output of 4.4 kW at 400 V, designed for use in the home, workshop and on building sites.

    In single-phase mode, it delivers a rated output of 3 kW and a maximum output of 3.3 kW at 230 V.

    The air-cooled Rato R 300 4-stroke engine is started by a pull cord. Overload protection and an oil level sensor protect the generator and engine, whilst the operating hours counter makes maintenance planning easier.

    For connection, there is one 400 V socket and two 230 V sockets, each rated at 16 A; the generator is dust- and splash-proof to IP54.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo F 6540 (Rato) petrol generator

    The Fogo F 6540 (Rato) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.

    Advantagesof the Fogo F 6540 (Rato) petrolgenerator:

    Operates in all weather conditions: the generator’s performance is not affected by severe frost, high air temperatures or high ambient humidity.

    Enhanced safety: electrical wires and cables are reliably insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.

    Ease of use: the Fogo F 6540 (Rato) generator is designed for domestic and professional use. Even a user with no experience can operate it with ease.

    AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.

    Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The frame has an anti-corrosion coating. The durability of the power unit is ensured by the air-cooling system.

    Fogo
    101313-64
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    4.4 (400 V), 3.3 (230 V)
    Rated power, kW
    4 (400 V), 3 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    13
    Sockets
    2х16А 230V, 1х16А 400V
    Fuel tank capacity, litres
    5.4
    Runtime at 75% load, hours
    2.2
    Sound level Lpa (7 m)/Lwa, dB
    97
    Engine model
    Rato R 300
    Type of engine
    Petrol, single-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.1
    Engine capacity, cm³
    301
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual
    Protection class
    IP54
    Net dimensions (LxWxH), mm
    745х530х495
    Net weight, kg
    81
    Power range, kW
    3 - 5
    Number of phases
    3
    Possibility of parallel connection
    No
    Automatic transfer switch (ATS)
    No
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    35603
