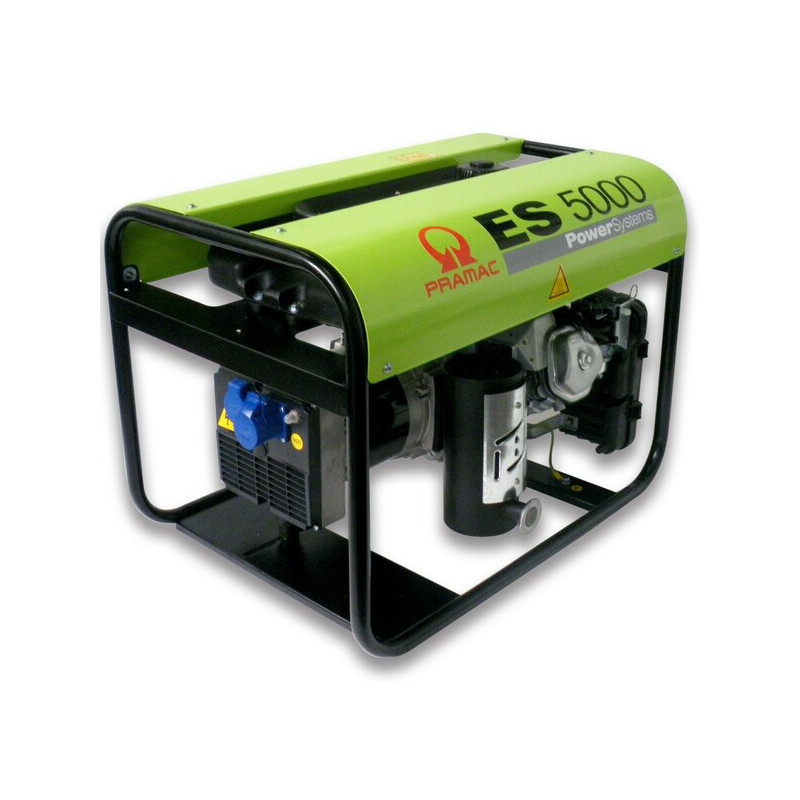

Pramac ES 5000 230V petrol generator

The Pramac ES5000 is a single-phase petrol generator from the Long Run Energy series, designed for long-term and intensive use where stable power and reliability are required in everyday applications. The model operates at 230 V / 50 Hz and is suitable for backup power, maintenance work, workshops, construction tasks and professional applications.

The generator delivers 4.6 kW of maximum power (ESP) and 3.9 kW of continuous power (COP). This is sufficient to power lighting, household appliances, pumps, power tools and other single-phase equipment. For connecting loads, there is 1 Schuko 230V 16A IP54 socket and 1 CEE 230V 16A IP44 socket. Page 3 also lists Thermal Protection and Oil Guard, which enhance safety during operation.

The model uses a reliable 270 cm³ air-cooled Honda GX270 petrol engine. The generator features a manual start (Recoil), a mechanical speed regulator and an enlarged 11-litre fuel tank. Fuel consumption is 2.22 l/h at 100% load and 1.67 l/h at 75% load. Runtime reaches 4.95 hours at 100% load and 6.59 hours at 75% load.

The generator is equipped with a brushless NSM alternator with insulation class H and IP23 protection. The voltage regulation system is capacitor-based. The permissible voltage deviation is +5 / -10% (cosφ1). The model’s dimensions are 729 × 500 × 536 mm, and its dry weight is 61 kg. The noise level is 97 dB(A) LWA, and the sound pressure at a distance of 7 m is 69 dB. Page 4 also notes the option to fit a transport kit with fixed or folding handles.
