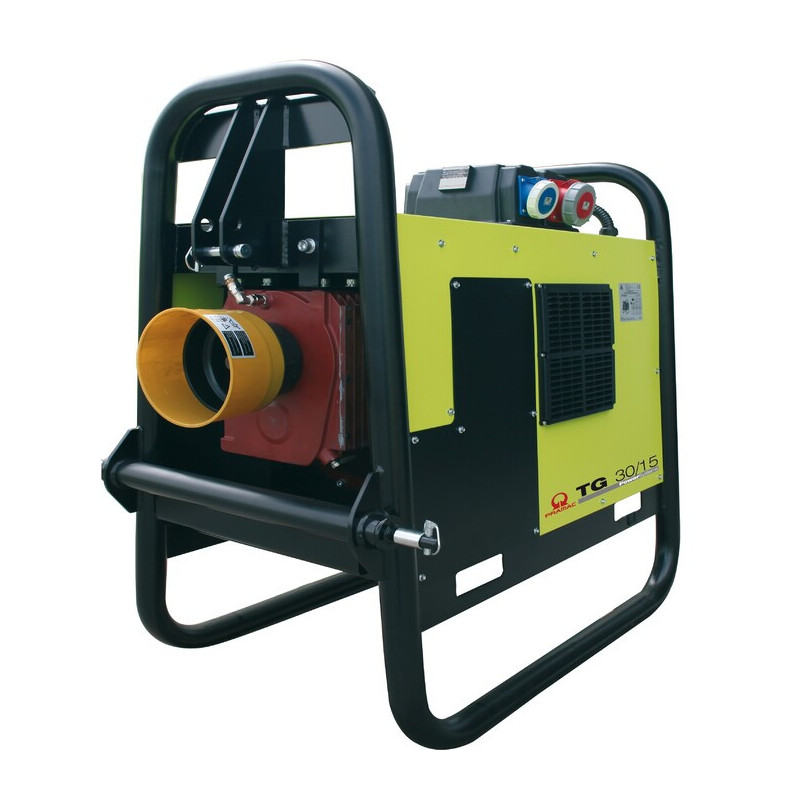

Pramac TG 30/15 400V AVR tractor generator

ThePramac TG30/15 IP44 is a tractor PTO-driven generator designed for agricultural, municipal and backup applications where an autonomous power source is required without a separate engine. The model connects to the tractor’s PTO and provides a reliable 3-phase and 1-phase power supply for various equipment.

The generator operates at 400/230 V and delivers 24.3 kW of 3-phase power and 9.7 kW of 1-phase power. This makes the model a practical solution for powering both 3-phase loads and individual single-phase appliances, tools and equipment.

The Pramac TG30/15 IP44 does not have its own engine, fuel tank or starting system, as it is driven by the tractor’s power take-off (PTO). The model requires a tractor with a power output of at least 51 kW / 70 hp, and the recommended PTO speed is 430 rpm.

The model is equipped with electronic AVR voltage regulation, which helps maintain a more accurate and stable output voltage under load. The technical data sheet for the generator specifies a voltage accuracy of 1.5%, and it is fitted with a voltmeter, a frequency meter and a minimum and maximum voltage controller.

For connecting loads, the generator has 1 SCHUKO 230 V 16 A IP54 socket, 1 3P+N+T CEE 400 V 32 A IP44 socket and 1 3P+N+T CEE 400 V 63 A socket. This provides flexibility in connecting equipment for domestic, field and emergency tasks.

The model has IP44 electrical protection, whilst the panel has IP54 protection, making it suitable for working conditions where reliability and durability are essential. The generator is also equipped with thermal-magnetic protection and residual current protection.

With dimensions of 958×645×1003 mm and a weight of 225 kg, the Pramac TG30/15 IP44 is a reliable solution for farms, utility services and users who need a powerful PTO generator for a mobile power source driven by a tractor.
