- New



Estimated dispatch: 24–26 November (3–5 working days after payment)
1 socket, 32 A, 400 V
2 sockets, 16 A, 230 V, Schuko
Automatic circuit breakers 400 V
Thermal circuit breakers 230 V
Residual current circuit breaker
Timer V, Hz, A, kVA
Connection kit for the tractor
Gearbox filled with oil

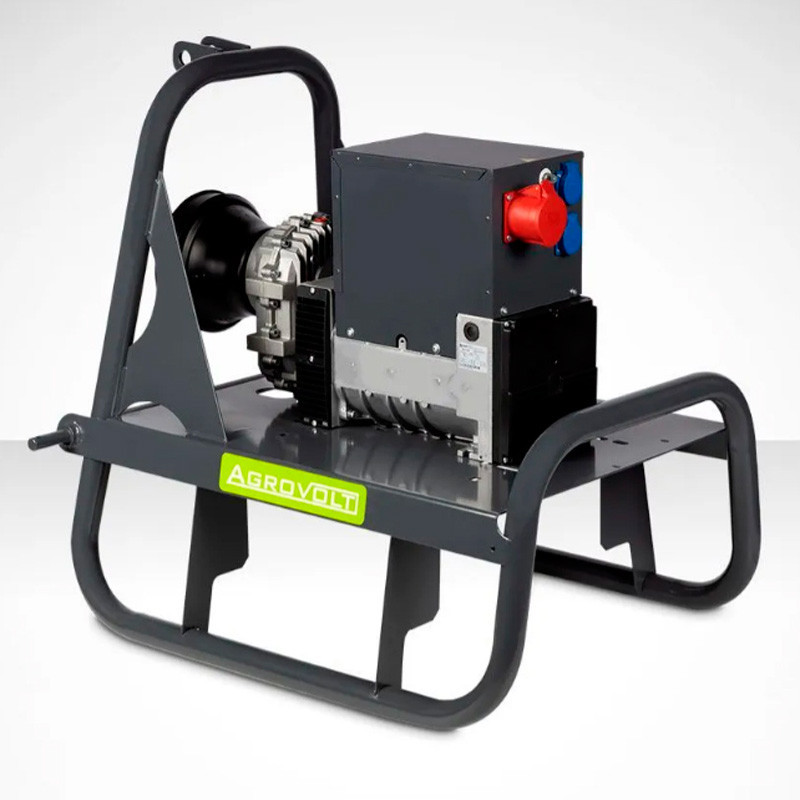

The Fogo Agrovolt AV 22generator isa powerful, self-contained unit with high performance, which can be easily attached to a tractor’s PTO shaft and reliably supplies a steady current without fluctuations to all machinery required in field conditions.
It is low-maintenance and easy to operate. It has proven its worth when working in difficult weather conditions. It is resistant to temperature fluctuations and high humidity.
To ensure the generator operates successfully and has a long service life, simply familiarise yourself with the instructions and follow them carefully. The only requirement is to keep the working parts of the generator clean and protect them from particularly aggressive alkaline or acidic substances.
| Voltage, V | 400 | 230 |
| Power factor, cos ⱷ | 0.8 | 1 |
| Maximum power, kVA/kW | 24.4/19.5 | 9.7/7.8 |
| Rated power, kVA/kW | 22/17.6 | 8.8/7 |
| Rated current, A | 31.9 | 38.9 |
| Power take-off shaft | ||
| Speed, revolutions per minute | 430 | |
| Power, kW/PS | 22/29 | |
| Power requirement at the PTO, kW/PS | 36/49 | |
| Torque, Nm | 628 | |
