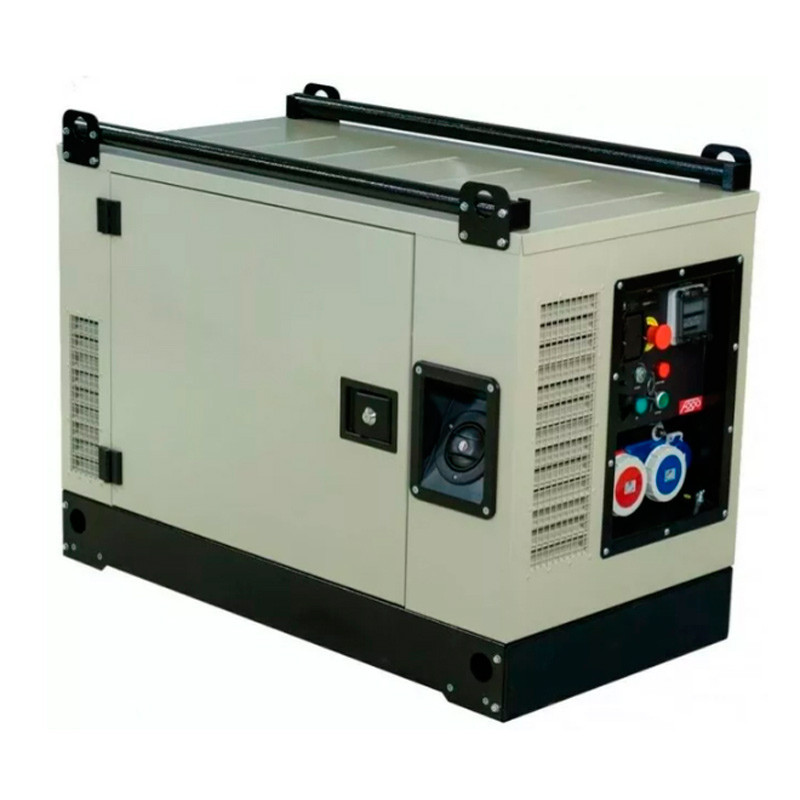

    Fogo FV 20000 CRA petrol generator (Vanguard)
    Fogo FV 20000 CRA petrol generator (Vanguard)
    Is this product right for me? Ask an expert

    We use your details solely to process your enquiry and to contact you. More information in our Privacy Policy.



    Fogo FV 20000 CRA petrol generator (Vanguard)

    €9,789.00
    VAT included
    14-day right of withdrawal

    Estimated dispatch: 24–26 November (3–5 working days after payment)

    In stock
    • Rated power, kW: 14 (400 V), 9 (230 V)
    • Maximum power, kW: 15.6 (400 V), 9.9 (230 V)
    • Voltage, V: 230/400
    • Start type: Electricity
    • Fuel tank capacity, litres: 60
    101313-104

    The Fogo FV 20000 CRA is a three-phase petrol generator with a rated output of 14 kW and a maximum output of 15.6 kW at 400 V, designed for domestic, commercial and construction site use.

    In single-phase mode, it delivers a rated output of 9 kW and a maximum output of 9.9 kW at 230 V (50 Hz).

    The air-cooled Vanguard 5434 2-cylinder engine (896 cm³) features an electric start; the battery is included.

    The unit is designed for connection to an automatic transfer switch (ATS). For connection, there is a 400 V socket rated at 32 A and a 230 V socket rated at 16 A.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 20000 CRA (Vanguard)petrol generator

    The Fogo FV 20000 CRA (Vanguard) generator can serve as an emergency power source to supply electricity to a country house, a repair team, a building site, etc.

    Advantages of the Fogo FV 20000 CRA (Vanguard) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Housing (metal): A generator with a metal housing not only offers the highest level of protection against mechanical damage to the unit, but also protects the generator from precipitation. Such a casing is fitted with an anti-corrosion coating and is powder-coated, which extends the casing’s service life by many years. It also provides additional sound insulation.

    Enhanced safety: Electrical wires and cables are reliably insulated. The housing’s earthing protects against electric shocks. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo FV 20000 CRA (Vanguard) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is ready for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures the generator operates without overloading and prevents voltage fluctuations.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The housing features a corrosion-resistant coating. The unit’s longevity is ensured by an air-cooling system.

    Fogo
    101313-104
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    15.6 (400 V), 9.9 (230 V)
    Rated power, kW
    14 (400 V), 9 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    39.1
    Sockets
    1х16А 230V, 1х32А 400V
    Fuel tank capacity, litres
    60
    Runtime at 75% load, hours
    9.2
    Sound level Lpa (7 m)/Lwa, dB
    96
    Engine model
    Vanguard 5434
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    2.3
    Engine capacity, cm³
    896
    Voltage regulator
    Intelligent AVR system
    Start type
    Electricity
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    1200х730х930
    Net weight, kg
    280
    Power range, kW
    10 - 20
    Number of phases
    3
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    6.5
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12
