    Fogo FV 15540 TRA petrol generator (Vanguard)
    Fogo FV 15540 TRA petrol generator (Vanguard)
    Fogo FV 15540 TRA petrol generator (Vanguard)

    Fogo FV 15540 TRA petrol generator (Vanguard)

    €6,424.00
    VAT included
    In stock
    • Voltage, V: 230/400
    • Maximum power, kW: 11.4 (400 V), 6.6 (230 V)
    • Rated power, kW: 10 (400 V), 6 (230 V)
    • Start type: Manual-electric
    37123
    99Items

    AVR

    400 V 32 A socket

    230 V 32 A socket

    230 V 16 A socket

    Overload protection

    Oil pressure sensor

    Silencer with exhaust adapter

    Battery

    Connection to ATS panel

    Hour meter

    Quantity :

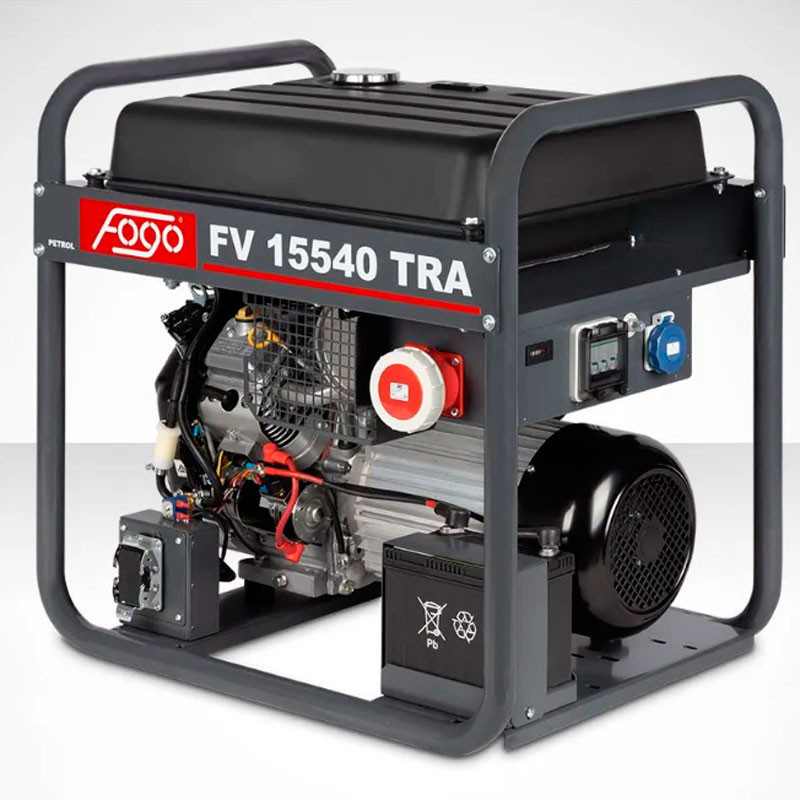

    Fogo FV 15540 TRA (Vanguard) petrol generator

    The Fogo FV 15540 TRA (Vanguard) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.

    Advantages ofthe Fogo FV 15540 TRA (Vanguard) petrolgenerator:

    Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.

    Enhanced safety: electrical wires and cables are reliably insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.

    Ease of use: the Fogo FV 15540 TRA (Vanguard) generator is designed for domestic and professional use. Even a user with no experience can operate it.

    AVR (Automatic Voltage Regulator): should the power supply from the mains be interrupted, the automatic system will start the generator.

    AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.

    Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The frame has an anti-corrosion coating. The durability of the power unit is ensured by the air-cooling system.

    Fogo
    101313-101
    99 Items

    Data sheet

    Voltage, V
    230/400
    Maximum power, kW
    11.4 (400 V), 6.6 (230 V)
    Rated power, kW
    10 (400 V), 6 (230 V)
    Frequency, Hz
    50
    Maximum current, A
    26.1
    Sockets
    1х32A (230V), 1x16А (230V), 1×32А (400V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    9.2
    Sound level Lpa (7 m)/Lwa, dB
    97
    Engine model
    Vanguard 3854
    Type of engine
    2-cylinder, 4-stroke petrol engine with air cooling
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.7
    Engine capacity, cm³
    627
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual-electric
    Protection class
    IP54
    Net dimensions (LxWxH), mm
    790х580х765
    Net weight, kg
    144
    Power range, kW
    10 - 20
    Number of phases
    3
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    4.9
    Automatic transfer switch (ATS)
    No
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    37123
