- New
€2,175.00
In stock
- Voltage, V: 230/400
- Maximum power, kW: 6.6 (400 V), 5 (230 V)
- Rated power, kW: 6 (400 V), 4.5 (230 V)
- Start type: Manual
Catalogue
Fogo F 9540 petrol generator (Rato)
€2,395.00
VAT included
Return policy: 14
- Voltage, V: 230/400
- Maximum power, kW: 6.6 (400 V), 3.3 (230 V)
- Rated power, kW: 6 (400 V), 3 (230 V)
- Start type: Manual
MPN:
35604
101313-79

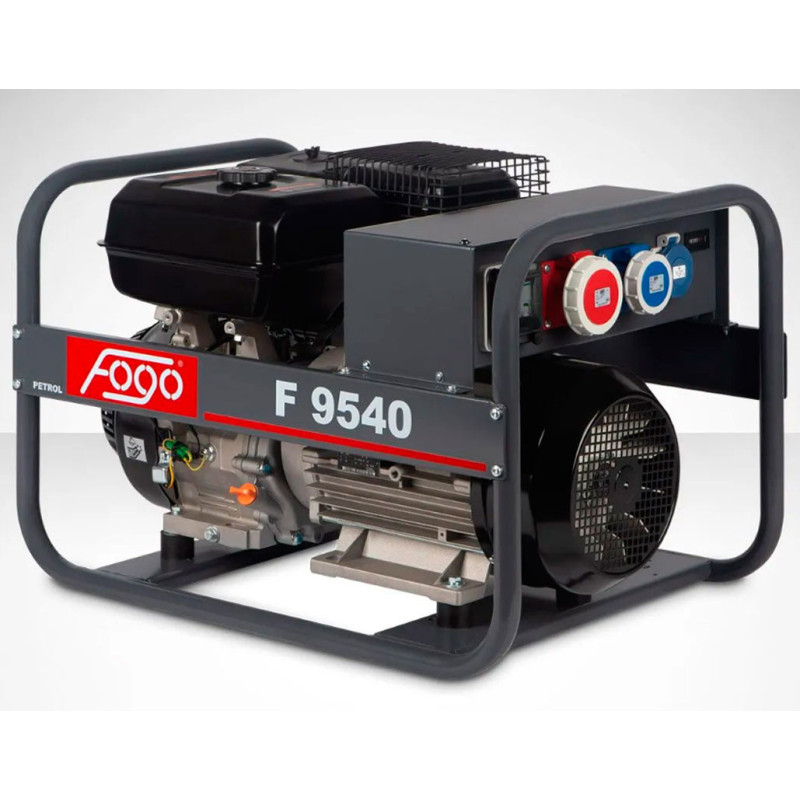

The Fogo F 9540 is a three-phase petrol generator with a rated output of 6 kW and a maximum output of 6.6 kW at 400 V, designed for use in the home, workshop and on building sites.
In single-phase mode, it delivers a rated output of 3 kW and a maximum output of 3.3 kW at 230 V.
The air-cooled Rato R 420 4-stroke engine is started by a pull cord.
Overload protection and an oil level sensor protect the generator and engine, whilst the operating hours counter makes maintenance planning easier.
For connection, there is one 400 V socket and two 230 V sockets, each rated at 16 A; the generator is dust- and splash-proof to IP54.
Expert advice
On-time delivery
Technical Support
Secure payment
Fogo F 9540 (Rato) petrol generator
The Fogo F 9540 (Rato) generator can serve as a backup power source to supply electricity to a country house, a repair crew, a construction site, etc.
Advantages ofthe Fogo F 9540 (Rato) petrolgenerator:
Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.
Enhanced safety: electrical wires and cables are securely insulated. The machine’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.
Ease of use: the Fogo F 9540 (Rato) generator is designed for domestic and professional use. Even a user with no experience can operate it.
AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.
Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The frame has an anti-corrosion coating. The durability of the power unit is ensured by the air-cooling system.
101313-79
99 Items
Data sheet
- Voltage, V
- 230/400
- Maximum power, kW
- 6.6 (400 V), 3.3 (230 V)
- Rated power, kW
- 6 (400 V), 3 (230 V)
- Frequency, Hz
- 50
- Maximum current, A
- 13
- Sockets
- 2х16А 230V, 1х16А 400V
- Fuel tank capacity, litres
- 6.5
- Runtime at 75% load, hours
- 2.2
- Sound level Lpa (7 m)/Lwa, dB
- 99
- Engine model
- Rato R 420
- Type of engine
- Petrol, single-cylinder, 4-stroke, air-cooled
- Fuel type
- Petrol engine
- Engine oil capacity, litres
- 1.1
- Engine capacity, cm³
- 420
- Voltage regulator
- Intelligent AVR system
- Start type
- Manual
- Protection class
- IP54
- Net dimensions (LxWxH), mm
- 745х530х495
- Net weight, kg
- 96
- Power range, kW
- 0.5 - 1
- Number of phases
- 3
- Possibility of parallel connection
- No
- Fuel consumption, litres per hour
- 2.9
- Automatic transfer switch (ATS)
- No
- Cooling system
- Air
- Warranty, months
- 12
Specific References
- MPN
- 35604
