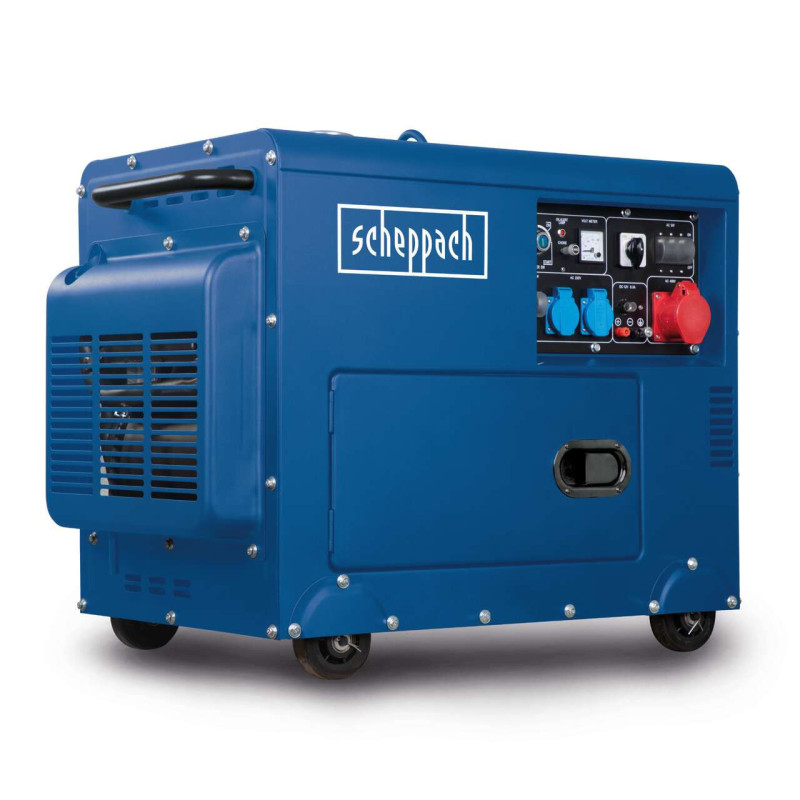

Scheppach SG5200D diesel generator – 7.7 hp | 5000 W | Electric start | 2x 230 V, 1x 400 V socket

The SG5200D generator from Scheppach delivers a maximum of 5,000 W, providing sufficient power for jobs around the house and on building sites. Thanks to its sturdy housing, four-wheel trolley and handle, this generator is highly versatile. A 16-litre fuel tank ensures a power supply lasting several hours, and thanks to the 400 V power connection, even machines requiring high-voltage power can be operated.

Diesel generator with electric start

Max. 5,000 W output power

One 400 V socket, two 230 V sockets and one 12 V DC connector for maximum flexibility

Sturdy and robust housing with wheels and a handle

16-litre fuel tank for hours of continuous generator operation

The SG5200D diesel generator from Scheppach reliably supplies you with power on the building site or elsewhere, allowing you to operate independently of the mains supply. Whether in a spacious garden, at a campsite, in the woods or on a building site – the SG5200D delivers sufficient power for several hours.

Power is provided by an air-cooled 4-stroke diesel engine with 5.7 kW and a displacement of 418 ccm. The SG5200D is fuelled via a 16-litre tank. The engine is started using an electric starter; there is no need to pull a starter cord. Fuel consumption at two-thirds load is around 1.43 l/h, meaning the generator can be used for several hours at full load without refuelling. The fuel gauge ensures you can always keep an eye on the current fuel level. The integrated low-oil protection system protects the engine from damage caused by low oil levels.

The SG5200D delivers a maximum output of 5,000 watts. The generator is also fitted with overload protection, which cuts off the power supply should the need arise.

The integrated AVR (Automatic Voltage Regulation) system ensures a stable output voltage by quickly compensating for voltage fluctuations caused by changing loads. This is particularly beneficial for electrical appliances that are difficult to start. For sensitive electronic devices such as laptops or smartphones, we recommend an inverter generator.

The generator is robustly built and weighs a hefty 148 kg. The casing is sealed, apart from the ventilation slots, to protect the generator as effectively as possible from external influences. The SG5200D has four wheels and a handle for transporting the generator. It is also fitted with a brake so that it can be parked safely.

As standard, the SG5200D is fitted with a 400 V~ (7.6 A) socket, two 230 V~ (13 A) AC sockets with overload protection switches, and a 12 V DC (8.3 A) connection.
