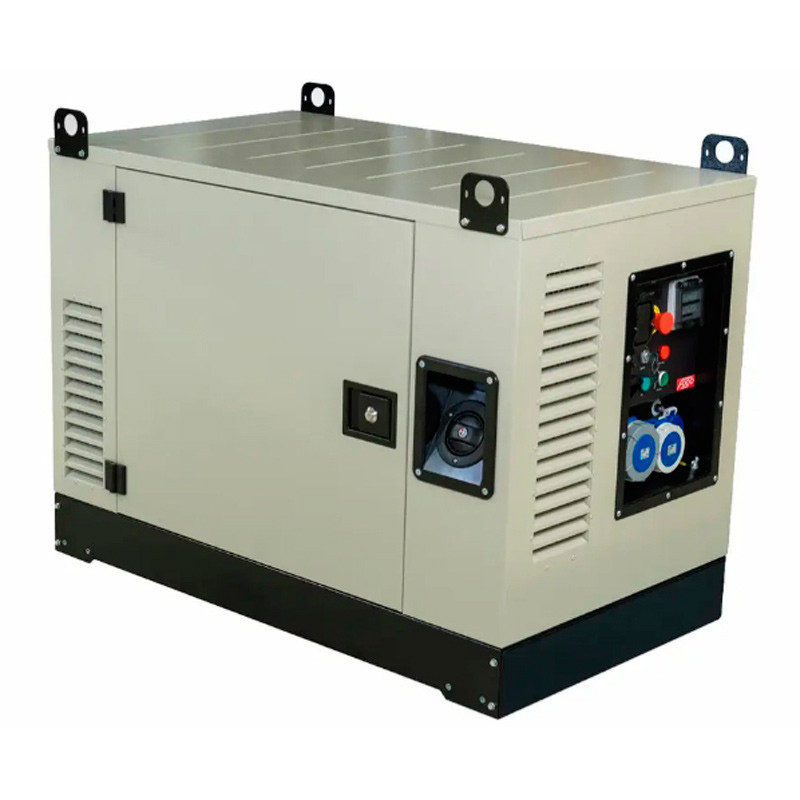

    Fogo FV 17001 CRA petrol generator (Vanguard)
    Fogo FV 17001 CRA petrol generator (Vanguard)

    Fogo FV 17001 CRA petrol generator (Vanguard)

    €9,924.00
    VAT included
    Return policy: 14
    In stock
    • Voltage, V: 230
    • Maximum power, kW: 16.5
    • Rated power, kW: 14.9
    • Start type: Electricity
    101313-91

    The Fogo FV 17001 CRA is a single-phase petrol generator with a rated output of 14.9 kW and a maximum output of 16.5 kW (230 V, 50 Hz) for domestic, commercial and construction site use.

    The air-cooled, 2-cylinder, 4-stroke Vanguard 5434 engine (896 cm³) is started via an electric starter; the battery is included.

    The AVR voltage regulator ensures a stable 230 V output, whilst overload protection and an oil pressure sensor safeguard the generator and engine.

    The generator is designed for connection to an automatic transfer switch (ATS).

    Three 230 V sockets rated at 16 A, 32 A and 63 A are available for connection.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo FV 17001 CRA (Vanguard) petrol generator

    The Fogo FV 17001 CRA (Vanguard) generator can serve as a backup power source to supply electricity to a country house, a repair team, a construction site, etc.

    Advantages ofthe Fogo FV 17001 CRA (Vanguard) petrolgenerator:

    Operation in all weather conditions: the generator’s performance is not affected by severe frosts, high air temperatures or high ambient humidity.

    Casing (metal): a generator with a metal casing offers the highest level of protection not only against mechanical damage to the unit but also protects the generator from precipitation. This casing is coated with an anti-corrosion finish and powder-coated, thereby extending the service life of the housing for many years. It also provides additional sound insulation.

    Enhanced safety: electrical wires and cables are securely insulated. The unit’s grounded casing protects against electric shock. An emergency shut-off system safeguards the generator from overheating when operating at maximum load.

    Ease of use: the Fogo FV 17001 CRA (Vanguard) generator is designed for domestic and professional use. Even a user with no experience can operate it.

    AVR (Automatic Voltage Regulator): should the power supply from the mains be interrupted, the system will automatically start the generator.

    AVR: the automatic voltage regulator ensures the generator operates without overloads and prevents voltage surges.

    Long component life: the generator is assembled on a specialised production line in accordance with international quality standards. The casing has an anti-corrosion coating. The durability of the power unit is ensured by an air-cooling system.

    Fogo
    101313-91
    99 Items

    Data sheet

    Voltage, V
    230
    Maximum power, kW
    16.5
    Rated power, kW
    14.9
    Frequency, Hz
    50
    Maximum current, A
    64.8
    Sockets
    1х63A (230V), 1х32A (230V), 1x16А (230V)
    Fuel tank capacity, litres
    60
    Runtime at 75% load, hours
    9.2
    Sound level Lpa (7 m)/Lwa, dB
    96
    Engine model
    Vanguard 5434
    Type of engine
    Petrol, 2-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    2.3
    Engine capacity, cm³
    896
    Voltage regulator
    Intelligent AVR system
    Start type
    Electricity
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    1200х730х930
    Net weight, kg
    290
    Power range, kW
    10 - 20
    Number of phases
    1
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    6.5
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12
