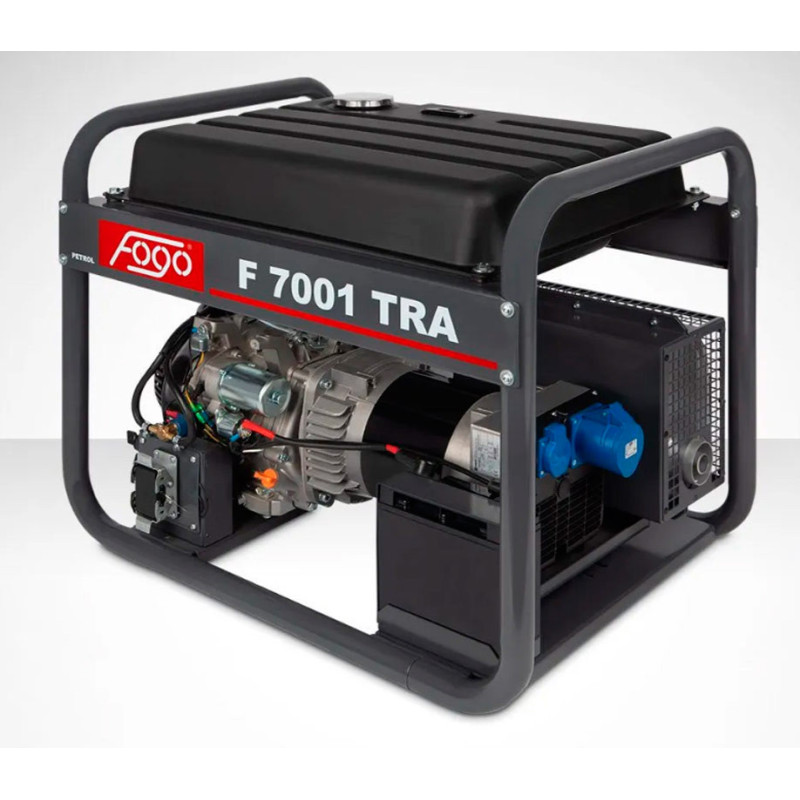

    Fogo F 7001 TRA petrol generator (Rato)
    Fogo F 7001 TRA petrol generator (Rato)
    Fogo F 7001 TRA petrol generator (Rato)
    Fogo F 7001 TRA petrol generator (Rato)
    Fogo F 7001 TRA petrol generator (Rato)
    Is this product right for me? Ask an expert


    Fogo F 7001 TRA petrol generator (Rato)

    €2,580.00
    VAT included
    14-day right of withdrawal

    Estimated dispatch: 18–20 November (3–5 working days after payment)

    In stock
    • Rated power, kW: 5.6
    • Maximum power, kW: 6.2
    • Voltage, V: 230
    • Start type: Manual-electric
    • Fuel tank capacity, litres: 45
    MPN:
    36110
    101313-47

    With a rated power output of 5.6 kW and a peak power output of up to 6.2 kW (230 V), it can cope with even the most demanding loads.

    The automatic voltage regulator (AVR) ensures a stable voltage.

    Thanks to the ATS connection, the generator starts automatically in the event of a power cut when fitted with the optional ATS control cabinet.

    The 45-litre fuel tank enables long running times, whilst the electric and recoil start ensure convenient starting.

    Features: 230 V sockets (16 A and 32 A), overload protection, low-oil protection, exhaust system with adapter and battery.

    Corrosion-resistant frame for a long service life.

    Quantity :
    • Expert adviceExpert advice
    • On-time deliveryOn-time delivery
    • Technical SupportTechnical Support
    • Secure paymentSecure payment

    Fogo F 7001 TRA (Rato)petrol generator

    The Fogo F 7001 TRA (Rato) generator can serve as an emergency power source to supply electricity to a country house, a repair team, a building site, etc.

    Advantages of the Fogo F 7001 TRA (Rato) petrol generator :

    Operates in all weather conditions: The generator’s operation is not affected by extreme cold, high air temperatures or high humidity.

    Enhanced safety: The electrical wiring and cables are reliably insulated. The earthed casing protects against electric shock. The emergency shut-off system protects the generator from overheating when operating at maximum load.

    Easy to use: The Fogo F 7001 TRA (Rato) generator is designed for both domestic and professional use. Even inexperienced users will find it easy to operate.

    Prepared for Automatic Transfer Switch (ATS): The generator is prepared for connection to an Automatic Transfer Switch. With the optionally available ATS control cabinet, it starts automatically in the event of a power cut in the mains supply.

    AVR: The automatic voltage regulator ensures the generator operates without overloading and prevents voltage fluctuations.

    Long service life of components: The generator is assembled on a specialised production line in accordance with international quality standards. The frame is corrosion-protected. The unit’s durability is ensured by an air-cooling system.

    Fogo
    101313-47
    99 Items

    Data sheet

    Voltage, V
    230
    Maximum power, kW
    6.2
    Rated power, kW
    5.6
    Frequency, Hz
    50
    Maximum current, A
    24.3
    Sockets
    1х16A (230V), 1х32A (230V)
    Fuel tank capacity, litres
    45
    Runtime at 75% load, hours
    15.5
    Sound level Lpa (7 m)/Lwa, dB
    99
    Engine model
    Rato R 420
    Type of engine
    Petrol, single-cylinder, 4-stroke, air-cooled
    Fuel type
    Petrol engine
    Engine oil capacity, litres
    1.1
    Engine capacity, cm³
    420
    Voltage regulator
    Intelligent AVR system
    Start type
    Manual-electric
    Protection class
    IP23
    Net dimensions (LxWxH), mm
    790х580х650
    Net weight, kg
    95
    Power range, kW
    5 - 10
    Number of phases
    1
    Possibility of parallel connection
    No
    Fuel consumption, litres per hour
    2.9
    Automatic transfer switch (ATS)
    Is
    Cooling system
    Air
    Warranty, months
    12

    Specific References

    MPN
    36110
