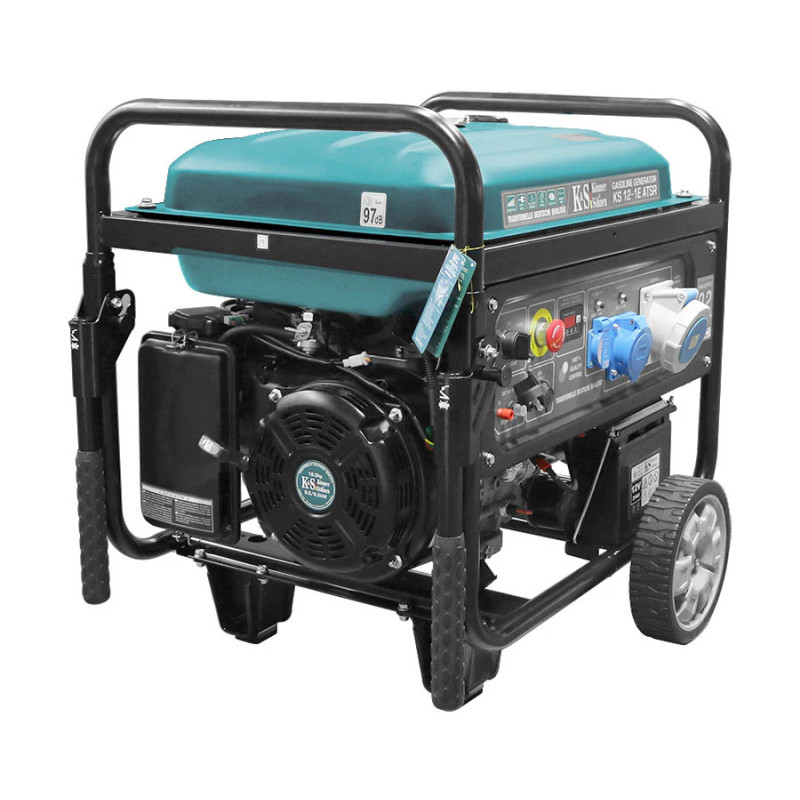

Petrol generator Könner & Söhnen KS 12-1E ATSR
€1,999
Tax Included
4260405363414
KS 12-1E ATSR
10Items
Petrol generator Könner & Söhnen KS 12-1E ATSR
| Powerful engine | Powerful and robust air-cooled single-cylinder four-stroke engine (18.5 hp). Each engine complies with European and international standards for quality, economy and environmental friendliness (including pollutant emissions and noise pollution). |
| Smooth and convenient starting system with electric start | The simplified starting system allows the engine to start quickly without significant effort. For convenience, the more powerful models are also equipped with an electric and/or self-starting system. |
| Ergonomic control panel | The user-friendly, ergonomic control panel makes it easy to control the entire appliance, requires no special skills and is equipped with sockets for the complete extraction of the electricity generated by the generator. Each socket is equipped with a corresponding plug. Emergency stop button. |
| Ats connection | The ATS unit (automatic transfer switch to emergency power) automatically starts the alternator and transfers the load when the main power supply is interrupted and automatically stops the alternator as soon as the main power supply is restored. |
| Alternator with 100% copper winding | The "Könner & Söhnen" brand alternators are equipped with a high-quality synchronous alternator with 100% copper winding. Only the copper winding can withstand the highest voltage overloads without damage and thus ensure long-lasting and reliable operation of the alternator. |
| Steel container | Könner & Söhnen generators are equipped with an enlarged steel fuel tank, which extends the operating time per tank filling. The fuel gauge is located on the fuel tank for easier handling. |
4260405363414
KS 12-1E ATSR
10Items
Data sheet
- Voltage, V
- 230
- Max power, kW
- 9.2
- Nominal power, kW
- 9
- Frequency, Hz
- 50
- Current (max), A
- 40
- Sockets
- 1х63A (230V), 1х32A (230V), 1x16А (230V)
- Fuel tank volume, l
- 55
- LED display
- Engine hours counter, frequency, voltage, low oil level indicator
- Noise level Lpa (7m)/Lwa, dB
- 71/96
- Power output DC, V/А
- 8.3
- Engine model
- KS 650
- Engine type
- Petrol powered 1-cylinder, 4-stroke air-cooled
- Engine power, hp/kW
- 18.5/13.6
- Fuel type
- Gasoline
- Crank case volume, l
- 1.4
- Engine cylinder volume, cm3
- 625
- Power output controller
- Intelligent voltage stabilization system AVR
- Engine start
- Manual/electric
- Alternator winding
- Copper
- Protection class
- IP23M
- Net dimensions (LxWxH), mm
- 790x705x680
- Gross dimensions (LxWxH), mm
- 800x715x780
- Net weight, kg
- 120
- Gross weight, kg
- 136
- SKU
- KS 12-1E ATSR
- Power range, kW
- 5 - 10
- Quantity of phases
- 1
- Batterie, A·h
- 21
Specific References
A powerful single-cylinder four-stroke engine can power a wide range of appliances and equipment.
The ability to connect an ATS unit, which is especially handy during power outages at night or in cold weather.
Reduced overheating: Copper dissipates heat better, which helps prevent the generator from overheating and extends its service life.
Informative visualisation: A multifunctional LED display provides a clear representation of important operating parameters.
Portability: Despite its considerable output of 9 kW, the generator remains quite portable and is easy to move thanks to handles and wheels.
